BLUM AVENTOS HL Installation

7

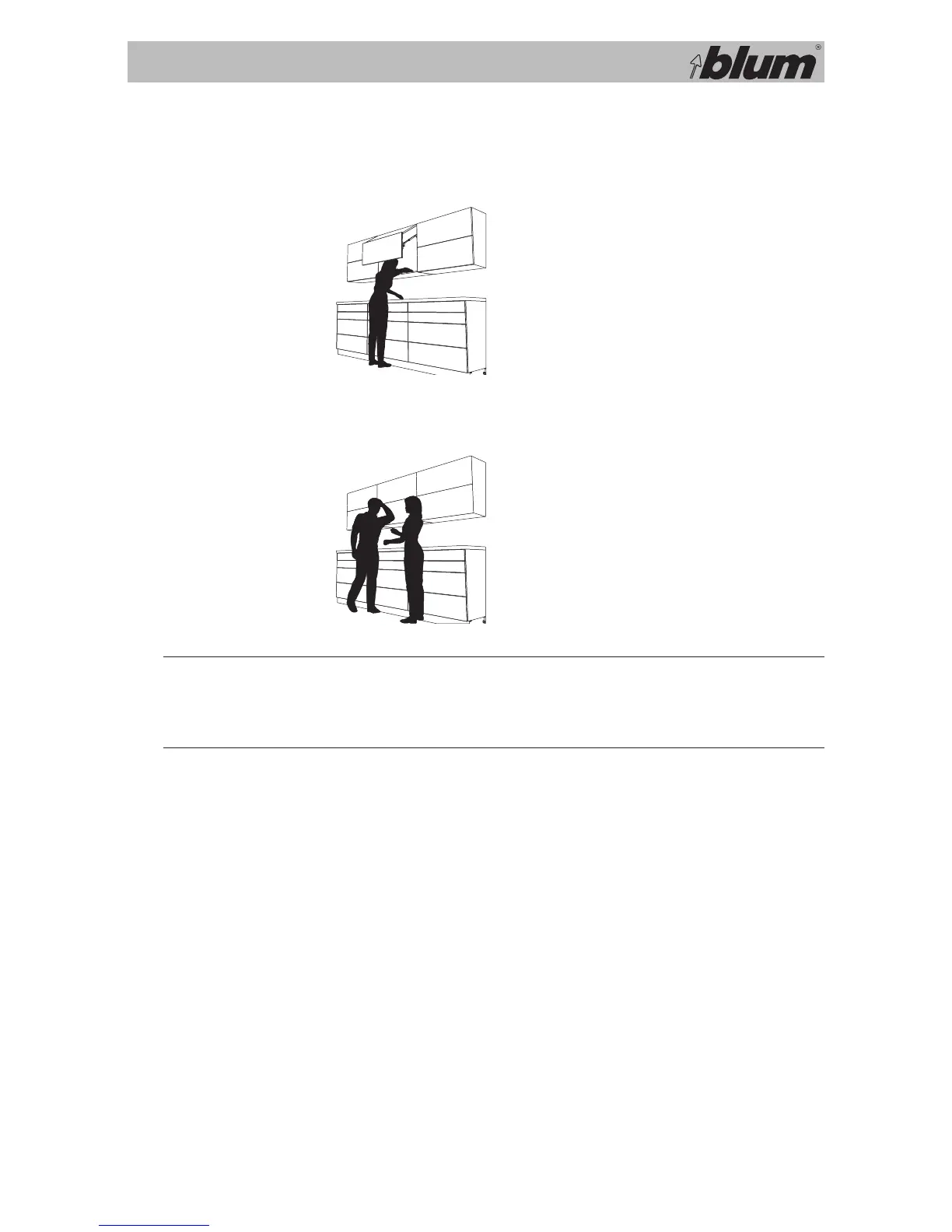

Leaning protection
SERVO-DRIVE for AVENTOS also protects against activation when someone
leans against the lift system. Leaning on the lift system will not open it.
CAUTION
Premature wear of SERVO-DRIVE for AVENTOS due to
improper use!
⇒ Do not press/pull with force against the movement direction when opening
or closing the lift system.
If the power supply is interrupted during SERVO-DRIVE for AVENTOS motion,
the lift system remains in place. Simply touch the Blum switch to reactivate
SERVO-DRIVE for AVENTOS.
The following are required to ensure the error-free functioning of SERVO-DRIVE
for AVENTOS:
• Blum spacing bumpers (page 6, item 5) must be attached to the front to main-
tain the required distance between the lift system and the cabinet.
• No items should be placed between the front and the cabinet and/or drive
unit.
Collision detection
The opening and closing action is interrupted automatically via the integrated colli-
sion detection feature when the front hits a body part or other object.

BLUM AVENTOS HL Specifications

General

Category	Lift system
Cabinet width range	Up to 1800 mm
BLUMOTION	Yes
SERVO-DRIVE	Optional
Application	Lift system for wall cabinets
Cabinet height range	300 mm to 580 mm
Motion technology	BLUMOTION
Material	Steel
Adjustment	3-dimensional adjustment
Opening Angle Stop	Optional
Mounting	Screw-on system
