BLUM AVENTOS HL Installation

6
4
12
3
5
6
7
7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1 Lift mechanism, drive unit with LED display and cover cap
2 Lever
3 Blum transformer with LED display
4 Blum switch with battery display
5 Blum distance bumper
6 Cabinet
7 Front / Lift system

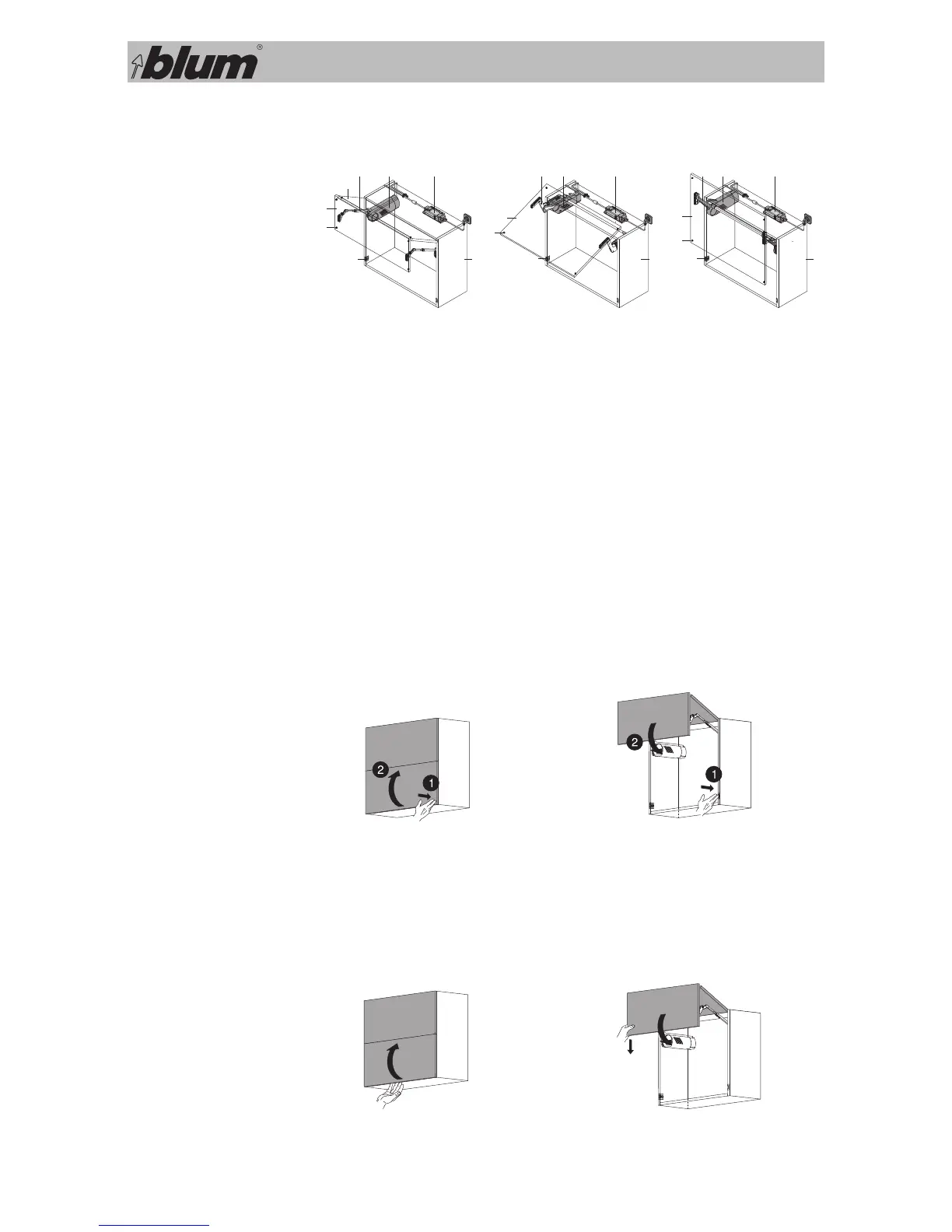

3 Description
Function SERVO-DRIVE for AVENTOS supports the opening and closing of lift systems in
furniture.
Electrical motion support system
The Blum switch (page 6, item 4) triggers the automatic opening and closing ac-
tion of SERVO-DRIVE for AVENTOS.
⇒ Press on the front
╵→ The lift system opens automatically
⇒ Press on the Blum switch
╵→ The lift system closes
automatically
⇒ Manual closing of the lift system by
moving it downwards
⇒ Manual opening of the lift system
by moving it upwards
Manual use
The lift system can be opened or closed manually without restrictions, due to the
integrated free movement, without damaging SERVO-DRIVE for AVENTOS.
AVENTOS HF AVENTOS HS AVENTOS HL

BLUM AVENTOS HL Specifications

General

Category	Lift system
Cabinet width range	Up to 1800 mm
BLUMOTION	Yes
SERVO-DRIVE	Optional
Application	Lift system for wall cabinets
Cabinet height range	300 mm to 580 mm
Motion technology	BLUMOTION
Material	Steel
Adjustment	3-dimensional adjustment
Opening Angle Stop	Optional
Mounting	Screw-on system
