BLUM AVENTOS HL User Manual

Subject to technical modifications without notice. © 2015
4
Installation screw
606N or 606P
Mounting plate
20S4200
6

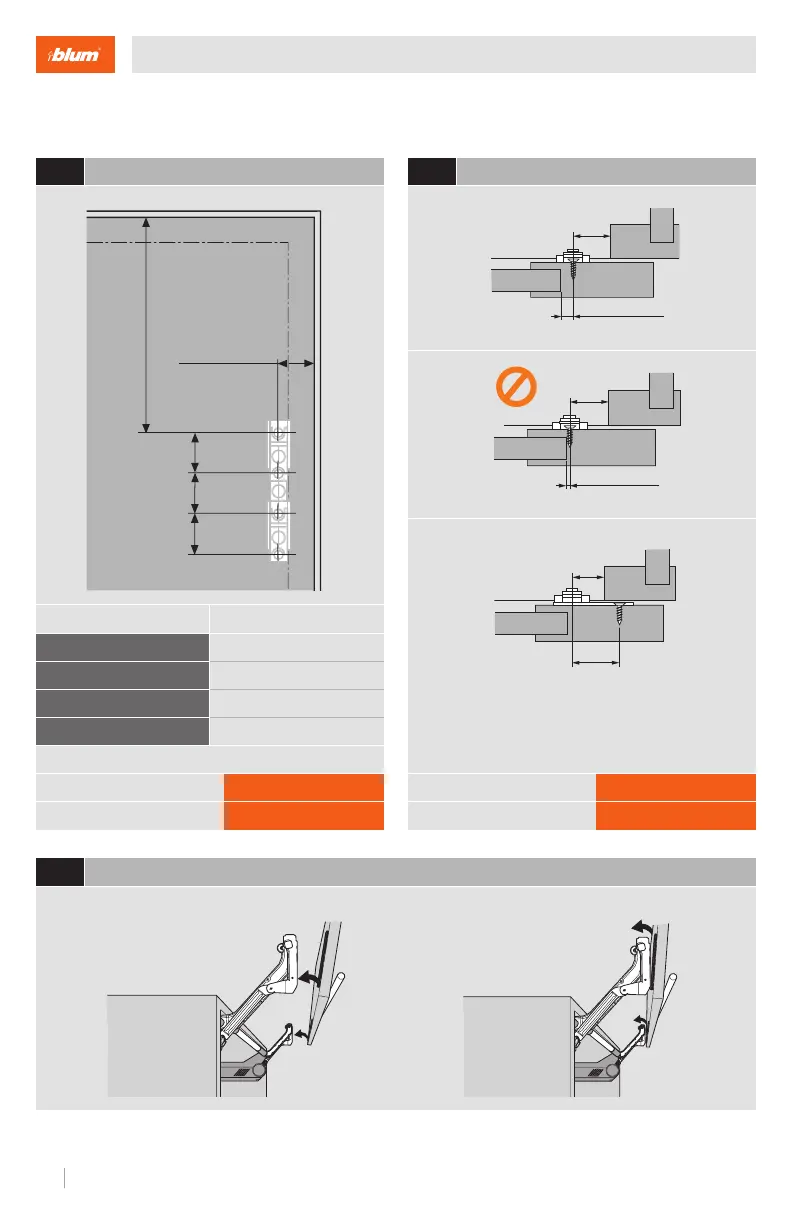

Attaching the door
less than 6
12.5
19
12.5
ü
Standard mounting plate works
more than 6
12.5
ü
Standard mounting plate does not work
Use mounting plate with bracket when panel
is less than 6 mm from screw
NOTE: All four screws must be installed
X
+
Overlay
32 3232
12.5
+
Overlay
5a
For Wood/wide alumuminum doors
5b
For five-panel doors
Attaching the mounting plates
Attach the door to the arm assembly using the CLIP mechanism.
Arm assembly X
20L3200.06
153
20L3500.06
203
20L3800.06
253
20L3900.06
303
Installation screw
Part no.
606N or 606P
Mounting plate
20S4F01
Assembly
