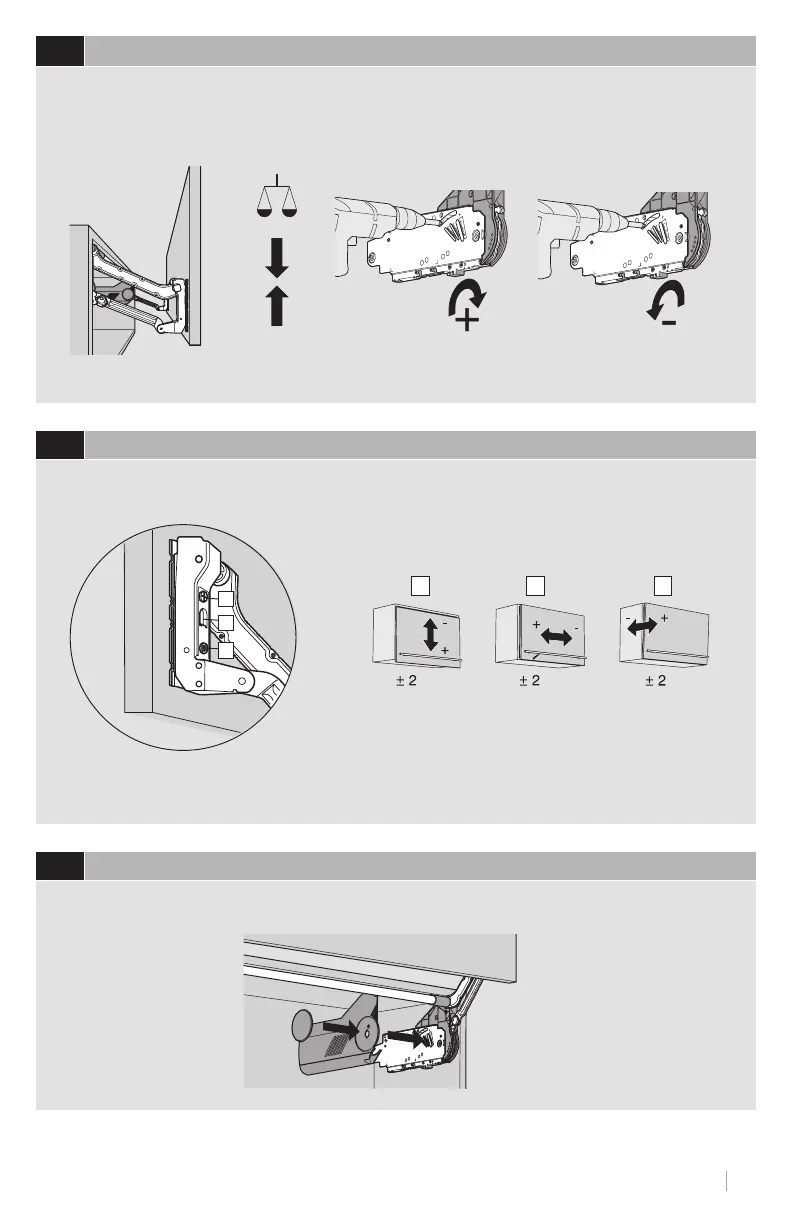

Adjusting the lift mechanism tension
8
Adjusting the door
Use a screw gun with a #2x2 POZI driver bit to adjust the lift mechanism to the desired tension.
The tension should be the same on both lift mechanisms.
9
Attach covers
Use a POZI screwdriver to adjust cam adjustments for each of the three-dimensional adjustments.
Snap the symmetrical cover caps on each cover plate. Place the left and right cover plates over
the appropriate lift mechanisms and snap them in place.
mm
mm
mm
1 2 3
1
2
3
