Specifications
41
LD6 Backhoe
OPERATING CRITERIA HYDRAULIC SYSTEM DATA
Digging Depth: (A) 6 Ft. (182.9 cm) Operating Pressure: 1800 P.S.I
(2 Ft. Flat Bottom) Flow Requirements: 4.0 G.P.M
Digging Radius: (B) 9 Ft. (274.3 cm) Fluid Type: Type “F”
Bucket Clearance: System Capacity: 10 Qts.
60° Rotation: (C) 49.5 In. (125.73 cm) Cylinders:
40° Rotation: (D) 62.0 In. (157.48 cm) Boom: 2.0 x 22 ½ x 1 ¼
Max. Power: (E) 72.0 In. (182.88 cm) Crowd (Dipper): 2.0 x 16 x 1 ¼
Swing Radius: 135 Degrees Bucket: 2.0 x 10 x 1 1/8
Controls: 4 - Lever Swing: 2.5 x 6 x 1 1/8
Transport Height: (F) 6 Ft. (182.9 cm) Stabilizer: 2.0 x 10 x 1 1/8
Stabilizer Spread:
Transport: (G) 48 In. (121.92 cm) CYCLE TIMES
Operating: (H)
Digging Force: Bucket Open: 3.0 sec.
With Bucket Cylinder: 3000 Lbs. Bucket Closed 3.5 sec.
With Dipper Cylinder: 1560 Lbs. Dipper Open: 2.5 sec.
Dipper Closed: 3.0 sec.
Boom Up: 6.0 sec.
Mounting Date: Boom Down: 4.5 sec.
Separate mounting kit Boom Right: 3.0 sec.
required to mount LD6 Boom Left: 3.0 sec.
to specific tractor model.
BUCKET OPTIONS WIDTH NO. TEETH CAPACITY WEIGHT
LD Series: 615-1 8” 2 .50 cu. ft. 30 Lbs.
615-2 13” 3 1.0 cu. ft. 48 Lbs.
615-3 16” 3 1.25 cu. ft. 56 Lbs.
SHIPPING DATA: WEIGHT CRATED DIMENSIONS
LD Series Backhoe 500 Lbs. 25” W x 29” H x 78” L
Mounting Kit 225 Lbs. 22” W x 16” H x 81” L
6 Ft. Backhoe with Mtg. Kit 725 Lbs. 25” W x 29” H x 78” L
May vary with individual tractor model due to system efficiency, tire size, etc.
(Design and Specifications subject to change without notice.)

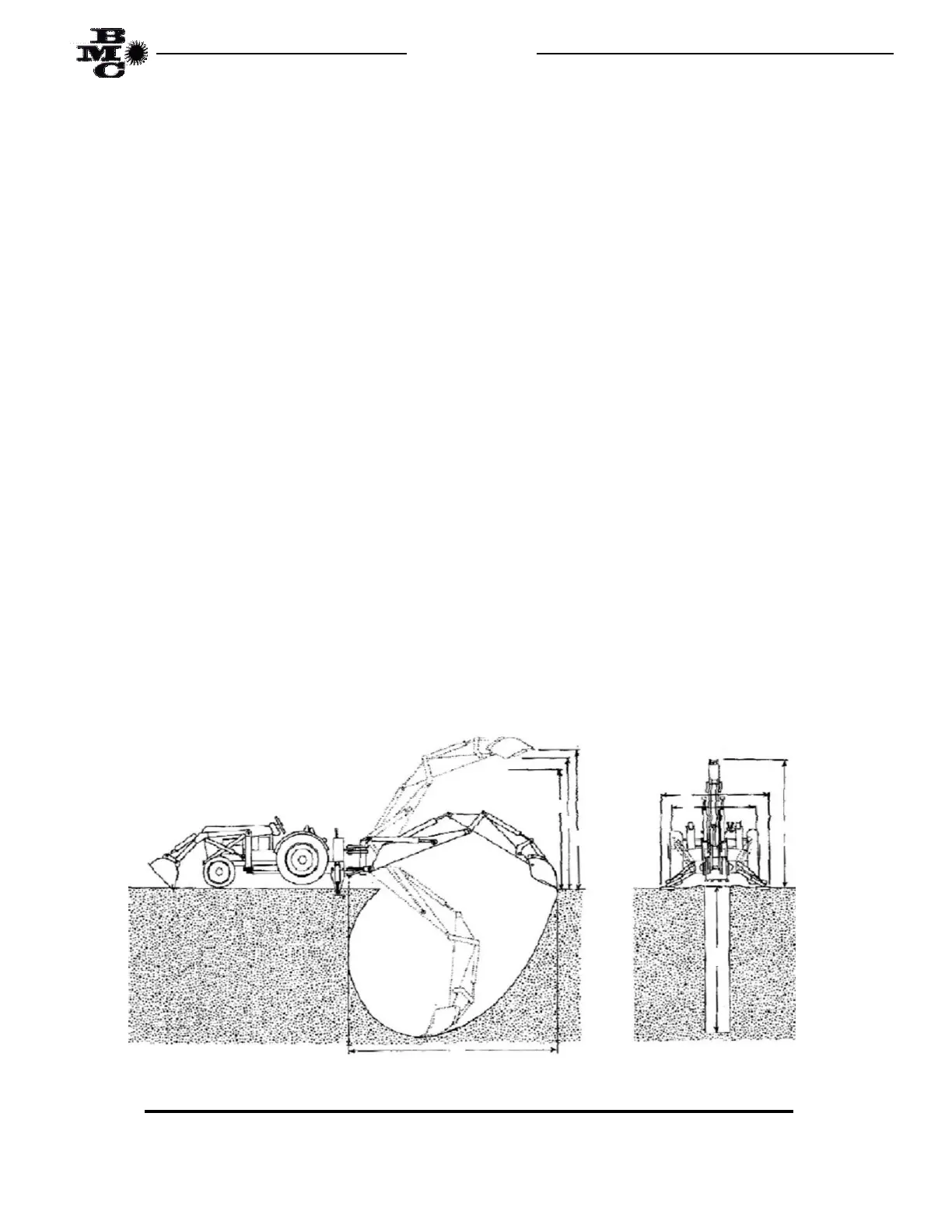

B
C
A
D
E
F
H
G
