LD6 BACKHOE
3

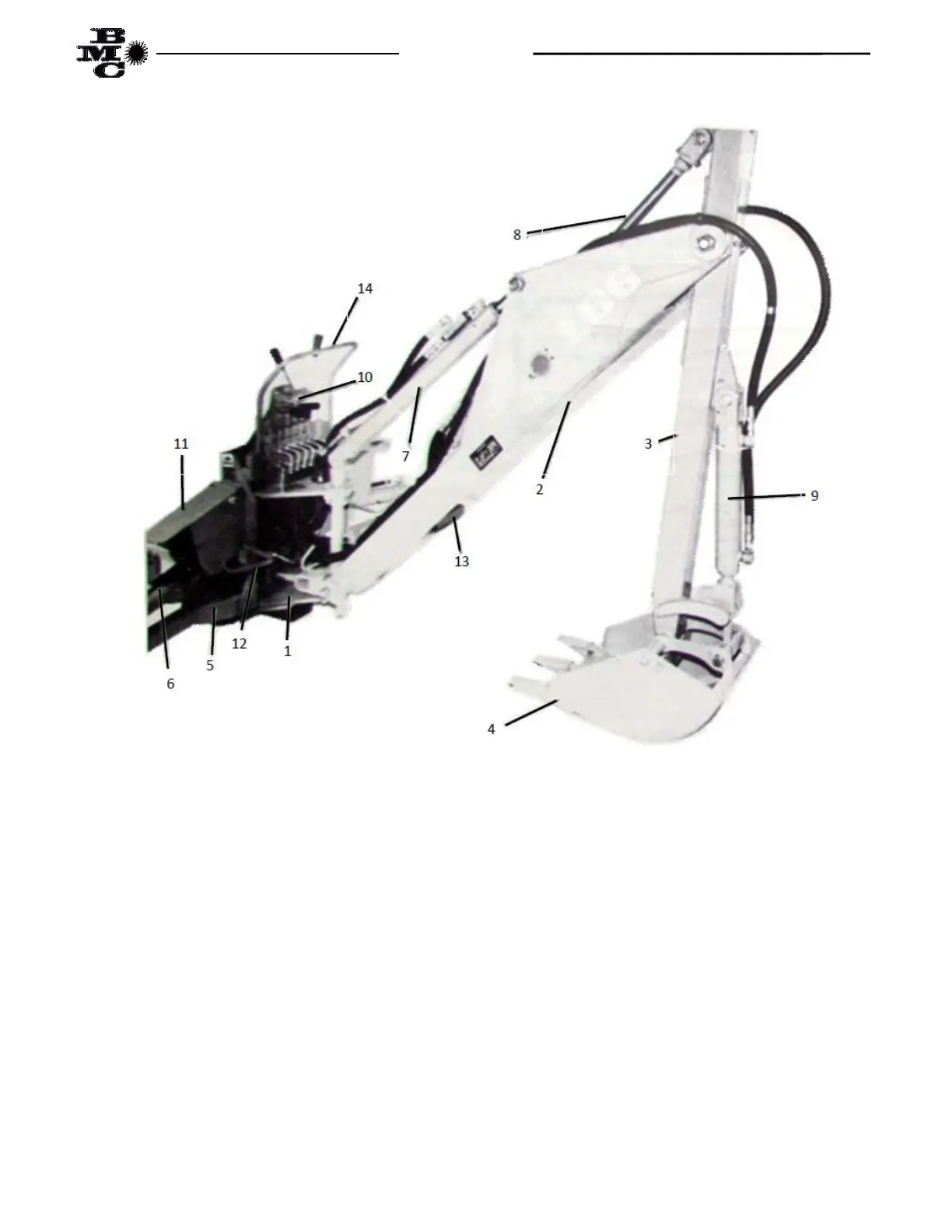

Fig. 1
SERIES LD6 BACKHOE
1. Main Frame 8. Crowd Cylinder
2. Main Boom 9. Bucket Cylinder
3. Dipper Arm 10. Control Valve
4. Bucket 11. Stabilizer Guard
5. Stabilizer Arm 12. Right Step
6. Stabilizer Cylinder 13. Stabilizer Foot
7. Boom Cylinder 14. Grab Bar
