CONTROLS
26

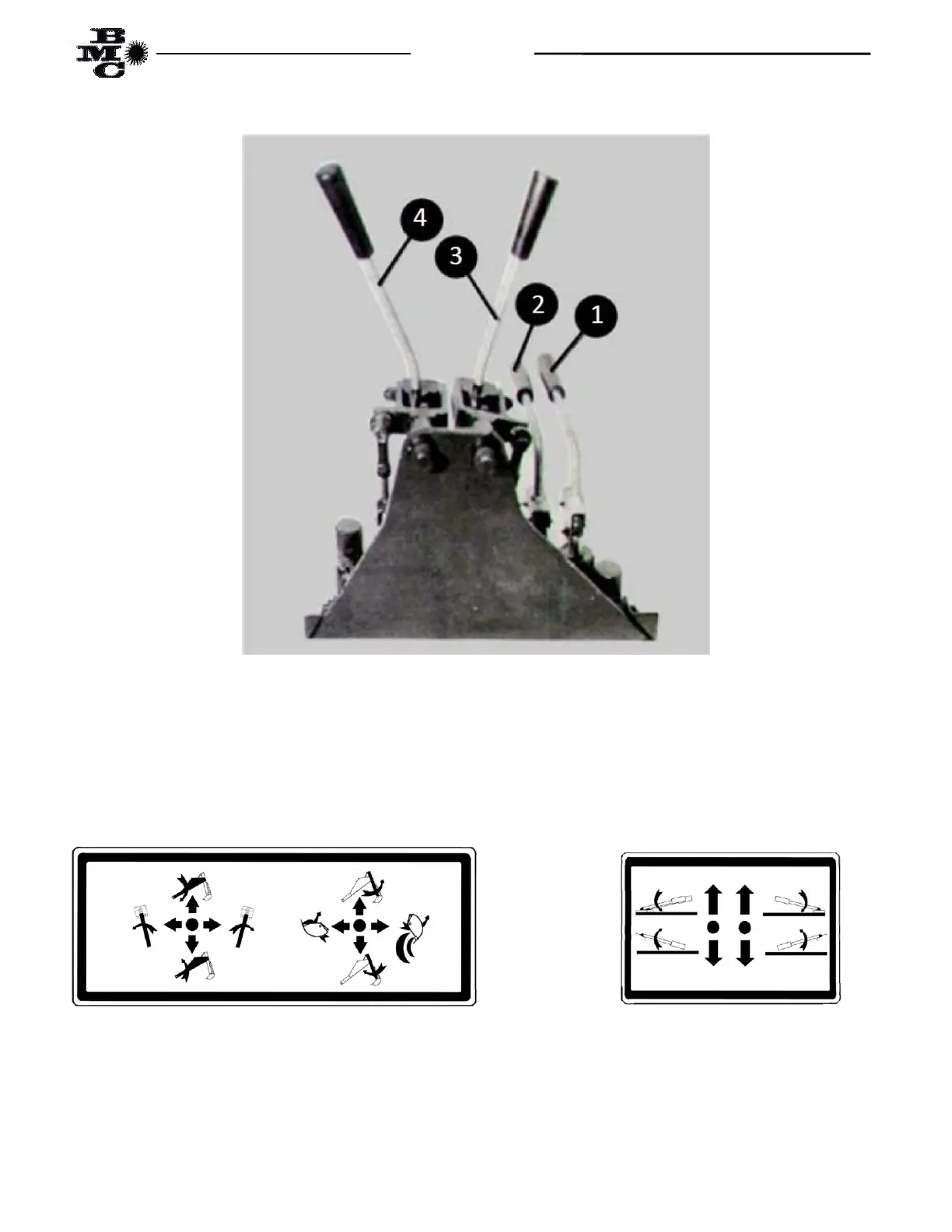

The BMC LD6 and MD8 Series Backhoe are operated by two lever controls as shown in Fig. 1.
Figure 1
Two Lever Control
The easiest way to remember the various lever functions is to relate the various backhoe operations to the operator’s seat
facing the rear. Moving boom lever to left, boom swings left. Therefore when referring to control lever functions, the left
side of backhoe will be the same as the right side of tractor.
Two Lever Control
Function Decal
Stabilizer
Function Decal
