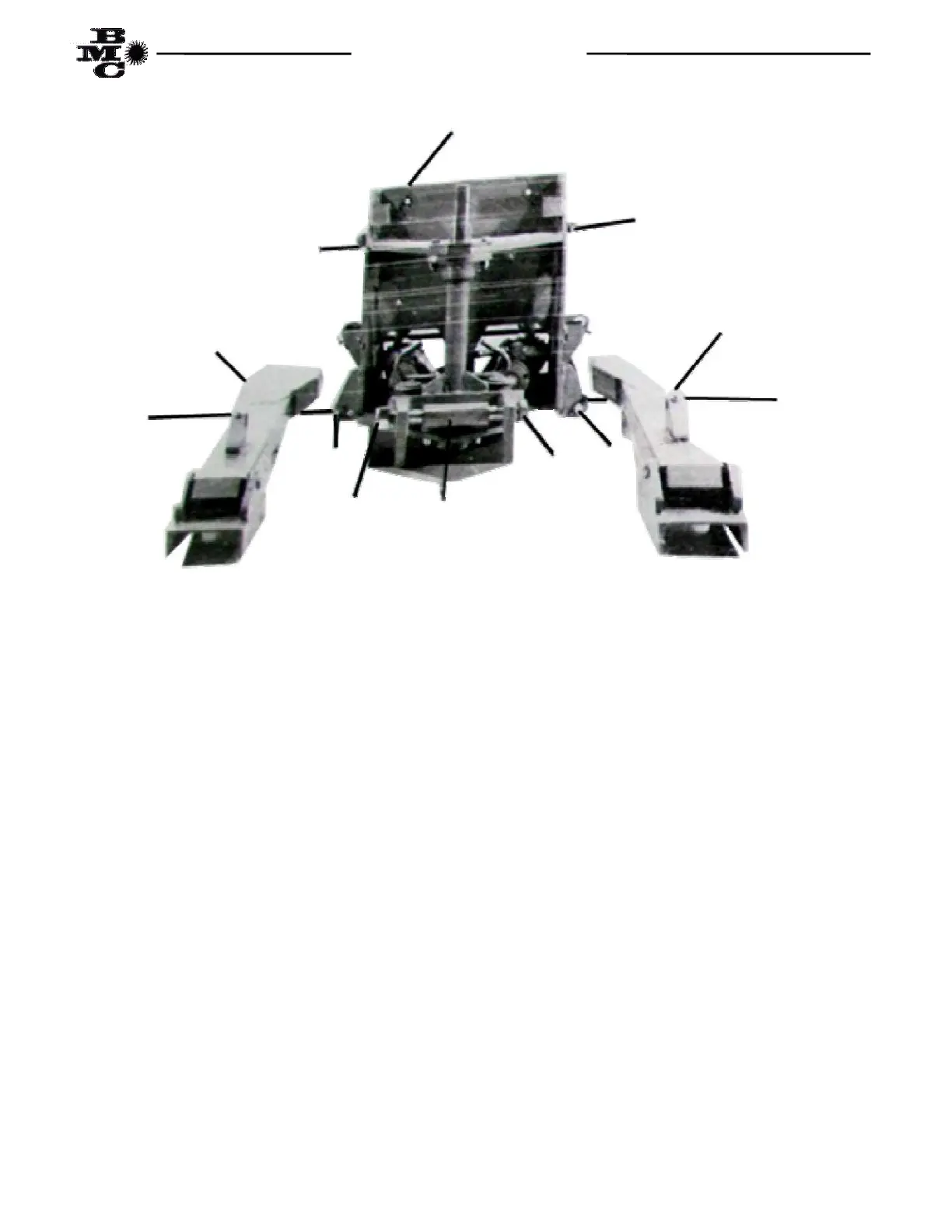

MD8 MAIN FRAME ASSEMBLY
13
Fig. 1
ITEM DESCRIPTION QUANTITY
1 Main Frame 1
2 *Step, Right 1
3 * Step, Left 1
4 *Grab Bar 1
5 Arm, Stabilizer 2
6 Pin, Stabilizer Arm ¾” x 9 ½” 2
7 *Guard, Stabilizer 2
8 Pin, Stabilizer Guard ½” x 5” 2
9 *Cylinder, Stabilizer 2
10 *Pin, Cylinder 1” x 3” 4
11 *Cotter Pin 3/16” x 1 ½” 14
12 Cotter Pin 1/8” x 1” 4
13 *Adaptor Fitting SAE 6 O-Ring to JIC 6 Flare Straight 4
14 *Ties, Plastic Hose 4
15 Bolt, Machine G5P 1” x 10 ½” 1
16 Nut, Hex Self-Locking 1
17 Spacer 1” I.D. x 1 5/16” O.D. x 5” 1
*ITEMS NOTED ARE SHIPPED IN BACKHOE PARTS BOX
1
8
8
5
5
15
6
6
17 16
To Next Page
