MD8 BACKHOE
4

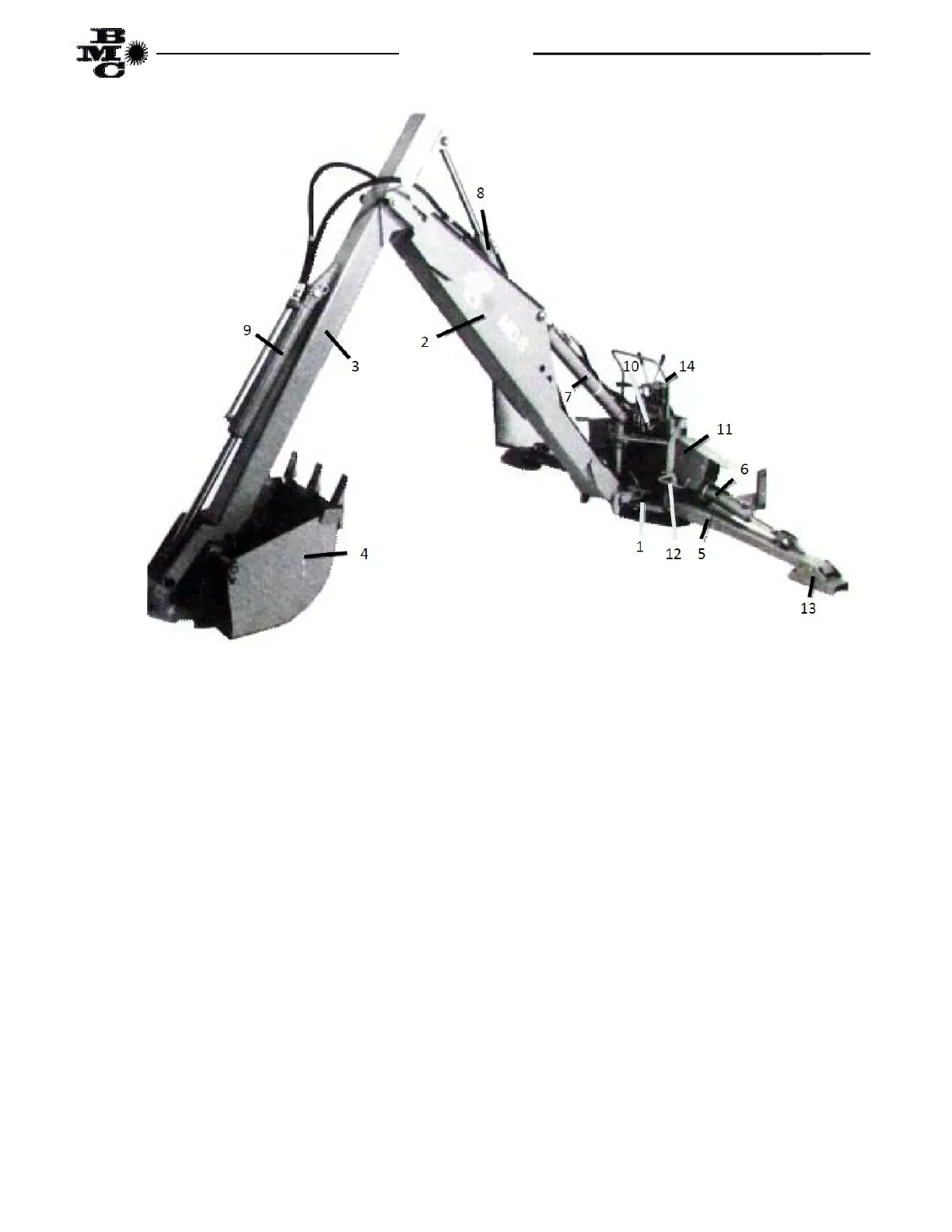

Fig. 2
SERIES MD8 BACKHOE
1. Main Frame 8. Crowd Cylinder
2. Main Boom 9. Bucket Cylinder
3. Dipper Arm 10. Control Valve
4. Bucket 11. Stabilizer Guard
5. Stabilizer Arm 12. Right Step
6. Stabilizer Cylinder 13. Stabilizer Foot
7. Boom Cylinder 14. Grab Bar
