BMW G30 2018 - Head-Up Display Functionality

Displays�and�Controls�2018
4.�Display�Elements
32
4.2.�Head‐Up�Display
4.2.1.�Overview
The�BMW�Head-Up�Display�is�an�element�of�the�Live�Cockpit�Professional�(SA�6U3).�The�full-color
BMW�Head-Up�Display�has�a�larger�image�compared�to�the�G12.
The�virtual�image�is�roughly�2.4m�away�from�the�eye�of�the�viewer.
The�Head‐Up�Display�is�connected�to�the�instrument�cluster�via�an�APIX�interface.

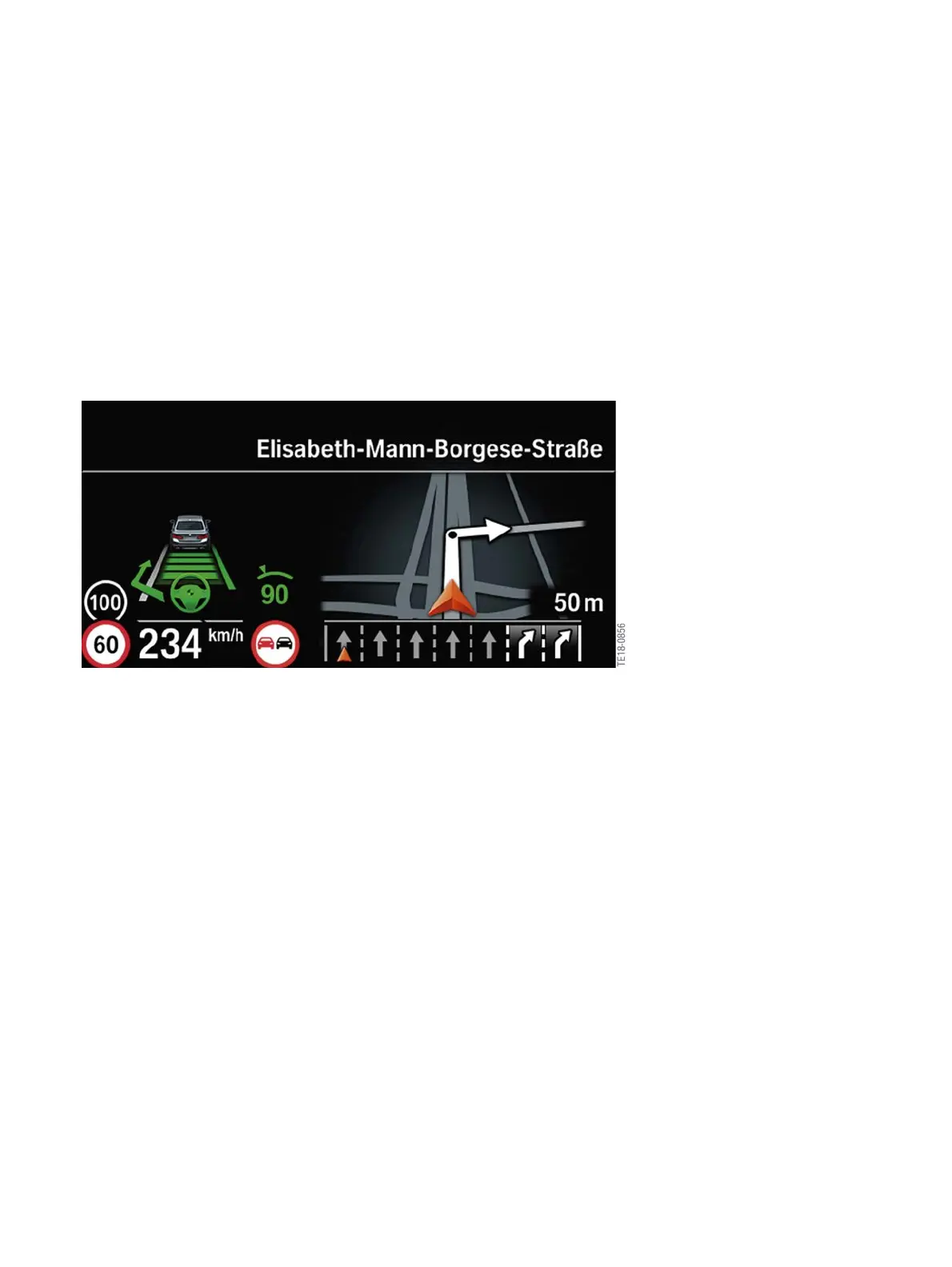

Head-Up�Display
4.2.2.�Settings
The�following�settings�can�be�performed�using�the�controller�on�the�BMW�Head‐Up�Display:
• Head-Up�Display�ON/OFF
• Height
• Display�brightness
• Image�rotation
The�picture�geometry�can�also�be�corrected�via�the�ISTA�diagnosis�system.
Reduced�height
The�option�to�reduce�the�height�of�the�displayed�figure�is�new.�The�content�is�summarized�in�the
display�in�a�more�compact�fashion.�This�can�be�useful,�e.g.�if�the�driver�is�not�able�to�detect�the�upper
area�of�the�displayed�information�owing�to�its�size.
