Displays�and�Controls�2018
4.�Display�Elements
25
4.1.�Instrument�cluster
4.1.1.�Overview
The�displays�of�the�new�instrument�cluster�are�shown�on�a�12.3"�TFT�display.�The�resolution�of�the
instrument�cluster�is�1920�x�720�pixels.
With�the�new�arrangement�of�the�speed�and�revolution�counter,�there�is�an�area�in�the�center�of�the
instrument�cluster�that�can�be�used�for�displaying�content.�In�the�following�graphic�you�see�the�display
of�the�navigation�map�between�the�two�displays�in�the�instrument�cluster.

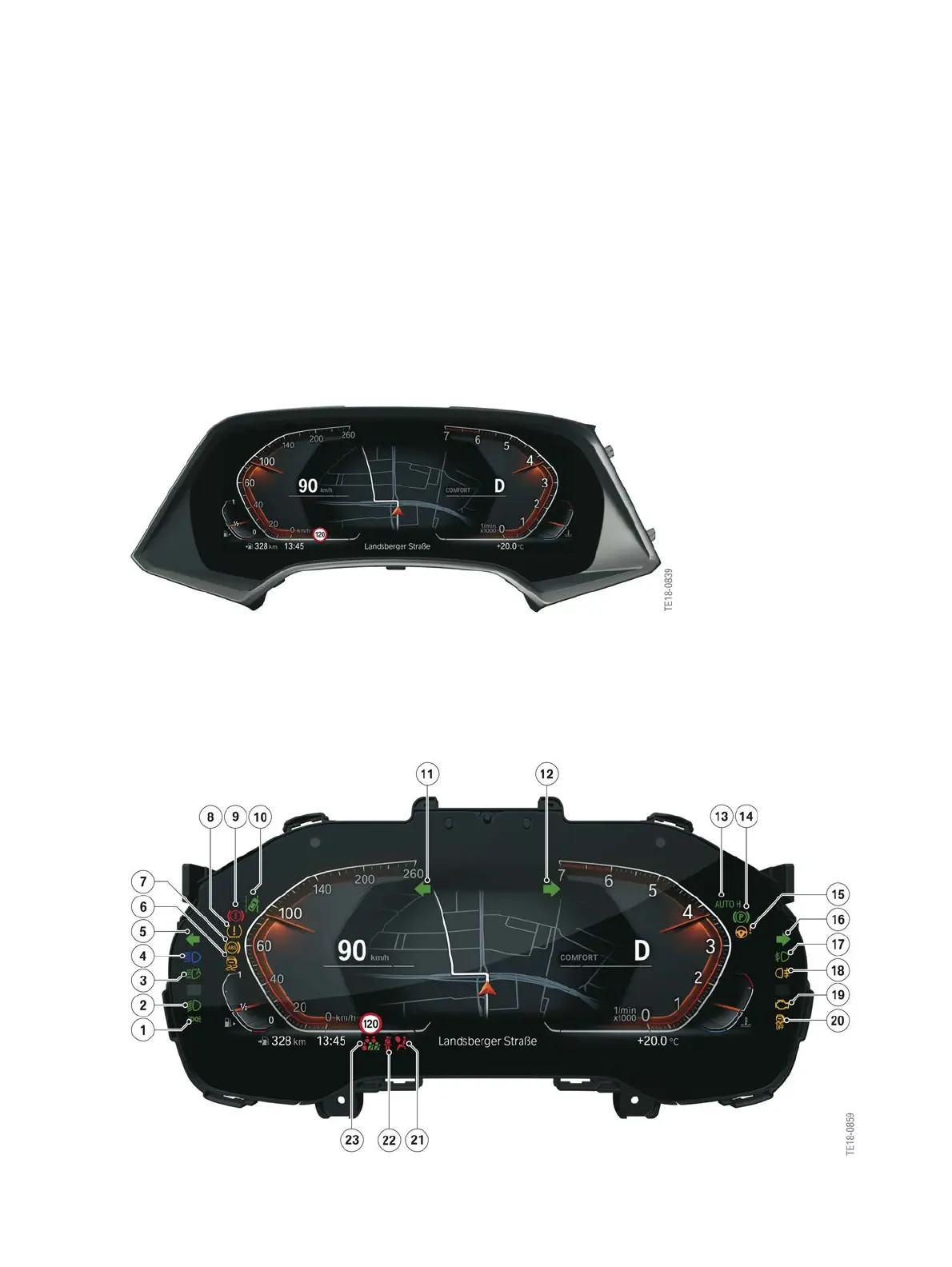

Instrument�cluster
4.1.2.�Warning�and�indicator�lights
Some�of�the�warning�and�indicator�lights�are�not�shown�in�the�digital�instrument�cluster.�They�are
designed�as�fixed�chamber�lights.
Displays�in�the�instrument�cluster
