BMW R 1200GS 2016 User Manual

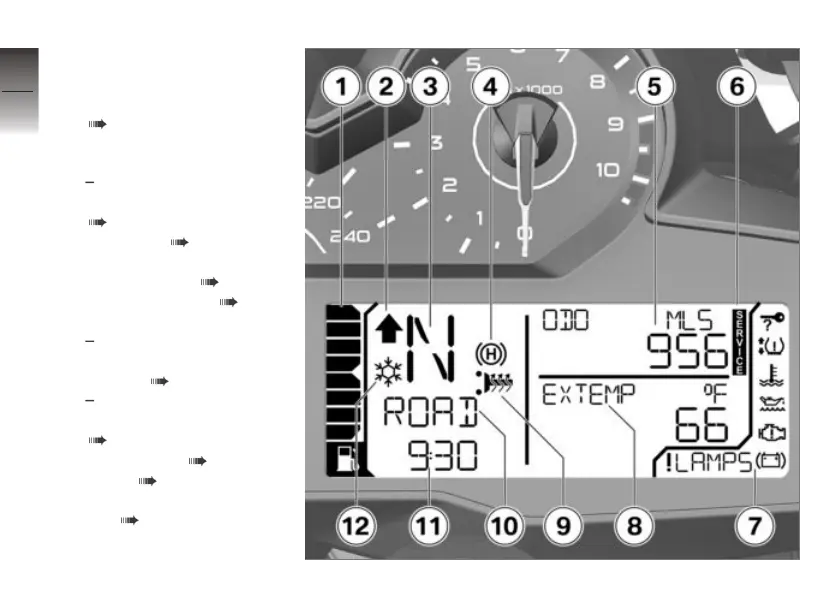

Multifunction display
1 Fuel fill level indicator
2 Upshift recommendation
( 45)
3 Gear indicator display, "N"
indicates "neutral".
4 with Hill Start Control
OE
Using Hill Start Control
( 79).
5 Odometer ( 57)
6 Service display (mainte-
nance interval) ( 205)
7 Warning symbols ( 24)
8 Onboard computer
with Dynamic ESA
OE
Dynamic ESA adjustment
options ( 67)
9 with heated grips
OE
Heated handlebar grips
( 82).
10 Riding mode ( 69)
11 Clock ( 60)
12 Outside temperature warn-
ing ( 31)
3
22
z Displays

BMW R 1200GS 2016 Specifications

General

Displacement	1170 cc
Bore x Stroke	101 mm x 73 mm
Max Power	125 hp (92 kW) at 7, 750 rpm
Max Torque	125 Nm at 6, 500 rpm
Compression Ratio	12.5:1
Fuel System	Electronic intake pipe injection
Final Drive	Shaft drive
Front Tire	120/70 R 19
Rear Tire	170/60 R 17
Length	2, 210 mm
Width	953 mm
Height	1, 450 mm
Wheelbase	1, 507 mm
Fuel Capacity	20 liters
Engine Type	Air/liquid-cooled four stroke flat twin engine, double overhead camshaft, one balance shaft
Transmission	6-speed
Clutch	Hydraulically operated wet clutch
Frame	Two-section frame, front- and bolted-on rear frame
Rear Suspension	Cast aluminum single-sided swing arm with BMW Motorrad Paralever
Front Brakes	Dual 305 mm discs, 4-piston calipers
Rear Brakes	Single disc brake, diameter 276 mm, 2-piston floating caliper
ABS	BMW Motorrad ABS (partly integral)
Seat Height	850 mm
Wet Weight	244 kg
