INSTALLATION
Note
The maximum charging current of the Wallbox on delivery is set to 10 A.
Installation requirements
Follow the local installation regulations.
The electrical connection (supply cable) must be prepared.
Acclimatisation: If there is a temperature difference of more than 15 °C between transport and the
installation site, the Wallbox must be acclimatised unopened for at least two hours.
Opening the Wallbox immediately may result in condensation formation in the interior and
cause damage when the device is switched on. In certain circumstances, damage caused by
condensation formation may also not appear until a later date after the installation.
Ideally, the Wallbox should be stored for a few hours in advance at the installation site. If this is not
possible, the Wallbox should not be stored in low temperatures (< 5 °C) overnight outdoors or in a
vehicle.
Tool list
The following tools will be required for the installation work:
Slotted screwdriver for supply terminals, blade width 5.5 mm
Phillips screwdriver PH2
Torx screwdriver T40

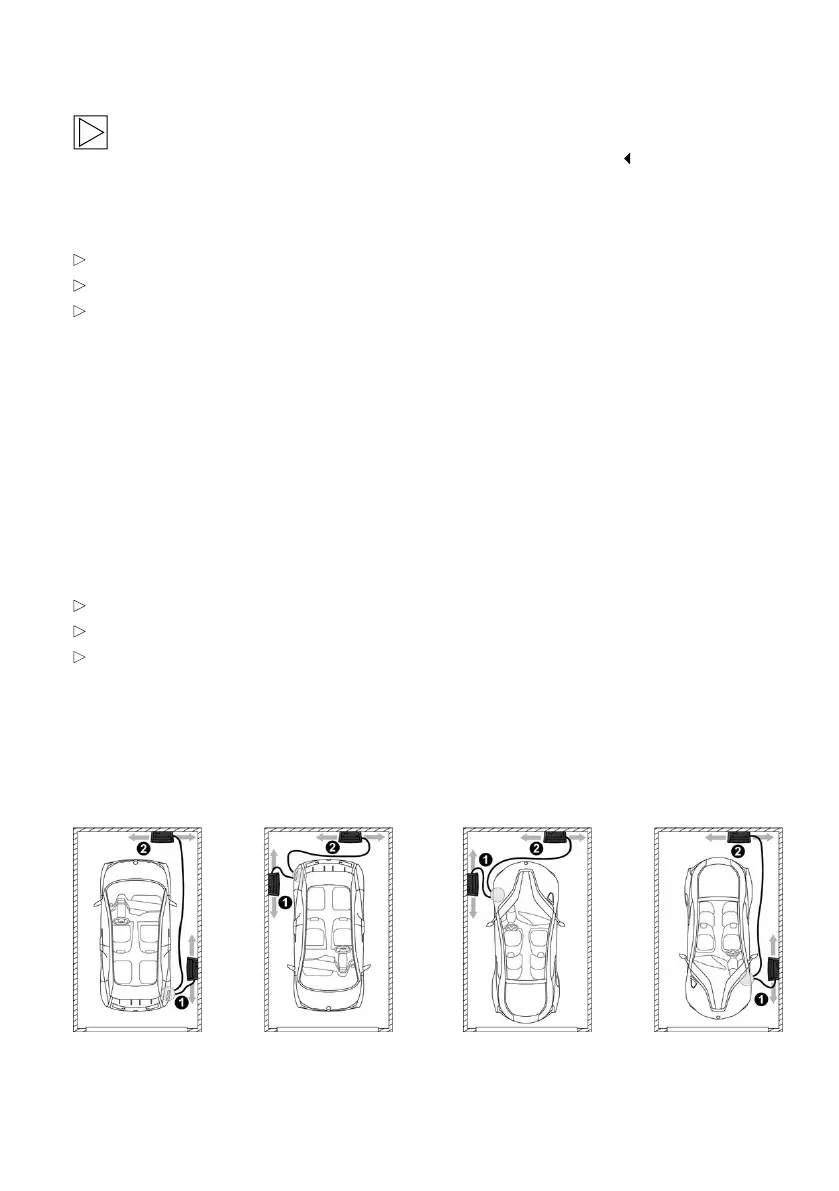

Recommended installation positions
When selecting the installation position, taken note of the position of the charge connector on your
vehicle and the direction in which you normally park it. Examples:
BMW i3 BMW/MINI PHEV
1 Recommended installation position
2 Alternative installation position
