ELECTRICS

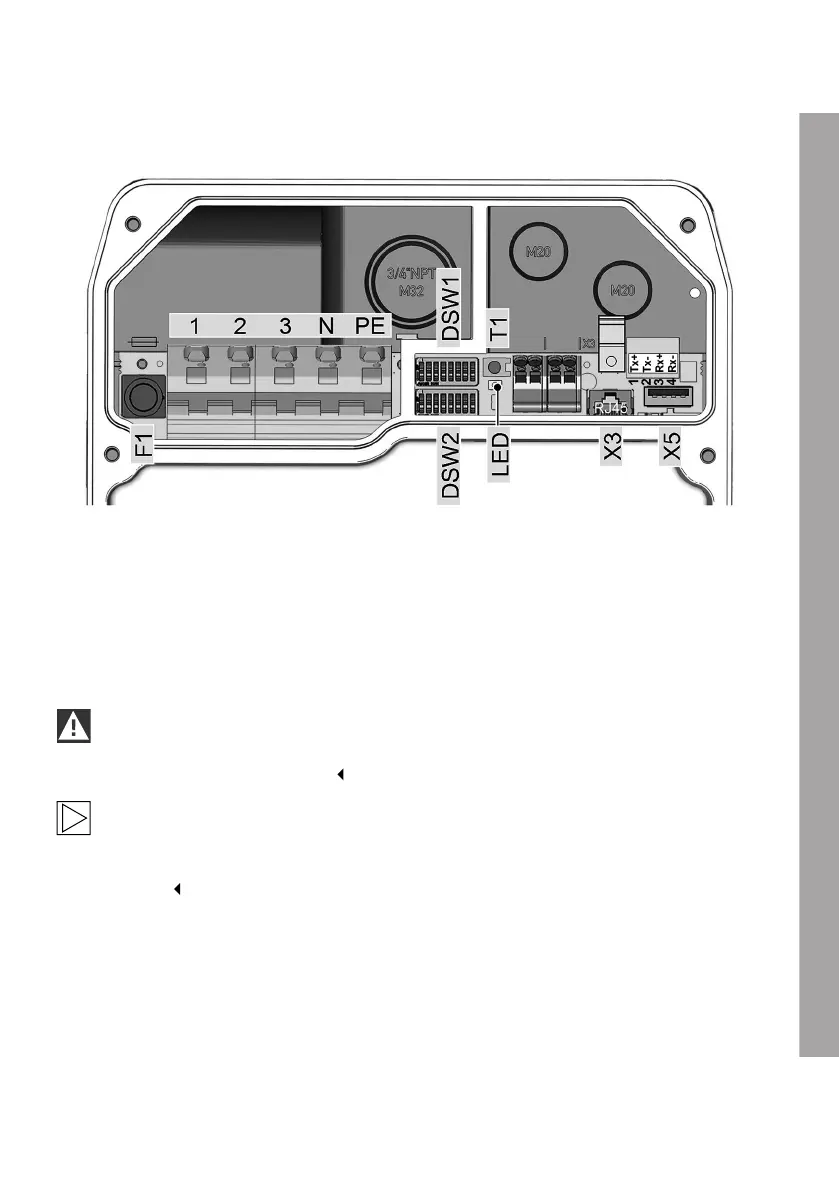

Connection diagram with open termination panel cover
1 Mains connection outer conductor 1 DSW1 DIP switch for configuration
2 Mains connection outer conductor 2 DSW2 DIP switch for addressing
3 Mains connection outer conductor 3 T1 Service button
N Mains connection, N conductor LED Status LED, internal
PE mains connection, PE conductor X3 Diagnostic connector, RJ45
F1 Fuse holder X5 USB connector
IMPORTANT
The X3 diagnostic connection is suitable only for error analysis and must not be used to
connect the device to a network.
Note
The connection overview shows all the options of the device, but the legend only lists the
available options. It is possible that your version of the device will not have all the connections
available.
EN
27
