BMW Wallbox Essential - Surface-Mounted Cable Routing - Cable Inlet from below; Cable Inlet from Behind - Cable in the Wall

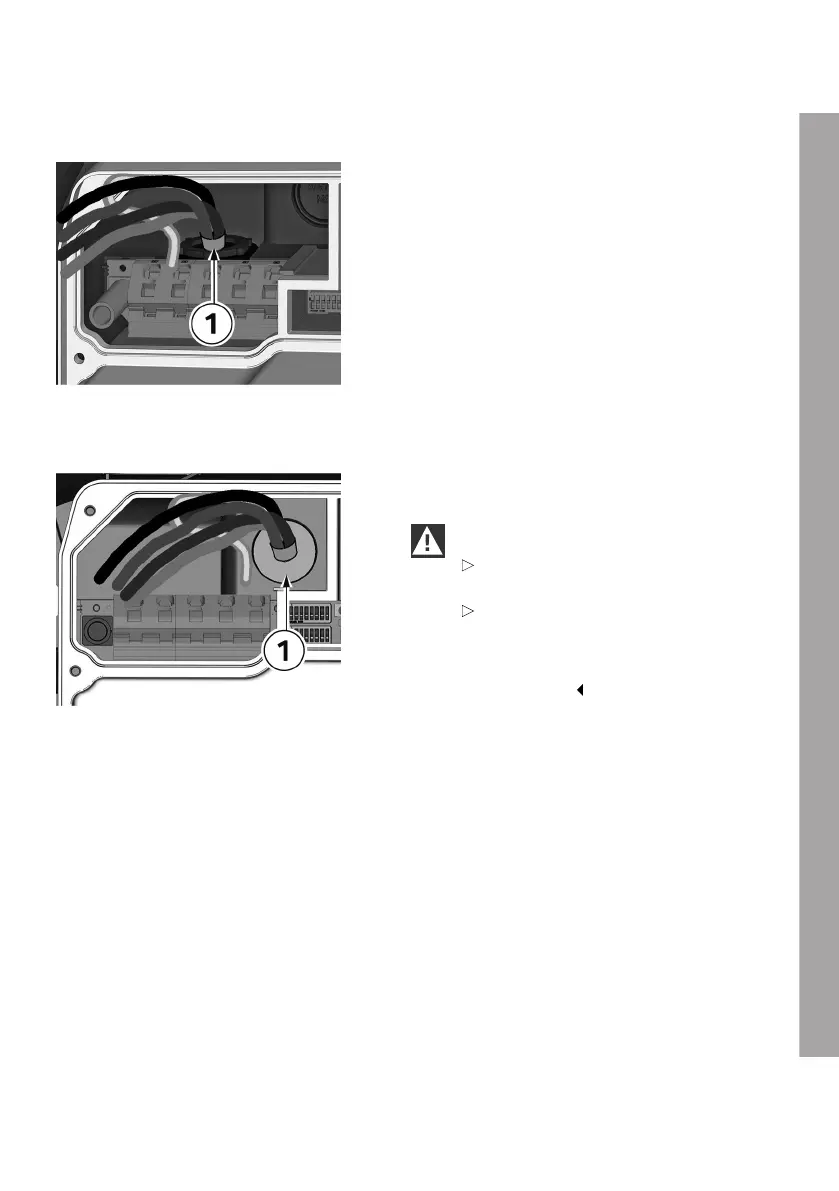

Cable routing from above/below
1. Route the supply cable through the cable
gland and tighten the gland.
The cable sheath 1 must be visible in the
connection zone.
Cable routing from behind (flush-mounted)
1. The supply line must be routed through the
bushing/double membrane seal 1 as shown.
IMPORTANT
Make sure that the double membrane
seal fits neatly against the cable sheath.
Make sure that the supply line
is inserted centrally, straight and
pressure-free through the double
membrane seal and that a tight fit is
guaranteed.
