Note
The Wallbox must not be permanently commissioned if this cover is missing or damaged.
Alternative covers must not be used.
Fastening screws

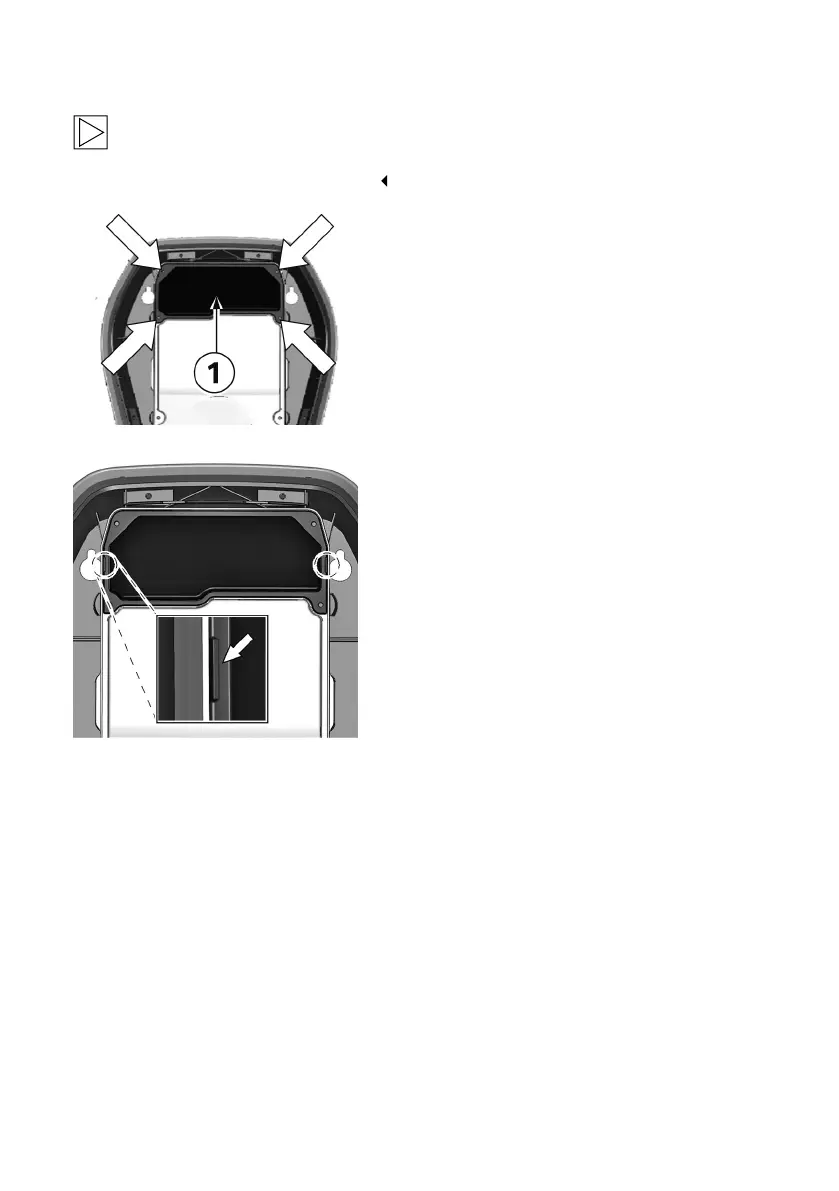

1. Insert the termination panel cover 1 again.
2. Install the termination panel cover again using
the four screws.
Housing marking
1. Tighten the four screws until the housing
markings on the right and left on the
termination panel cover are flush with the
housing.
2. The termination panel cover must correctly
seal the housing.
Increased force is required for the self-tapping
screws: 3.5Nm.
36
