MAINTENANCE
Replacing the fuse
Fuse Current/Voltage Types Dimensions
F1 6.3 A / 250 V Slow-action with high
shut-down capacity
(>1500 A) (T) (H)
5 x 20 mm fuse
WARNING
Electrical danger.
The terminal cover may only be opened by authorised electricians with the appropriate training
and qualifications.
ESD
Danger of damage. Electronic components may be destroyed if touched.
Before handling modules, perform an electrical discharge process by touching a metallic
earthed object.

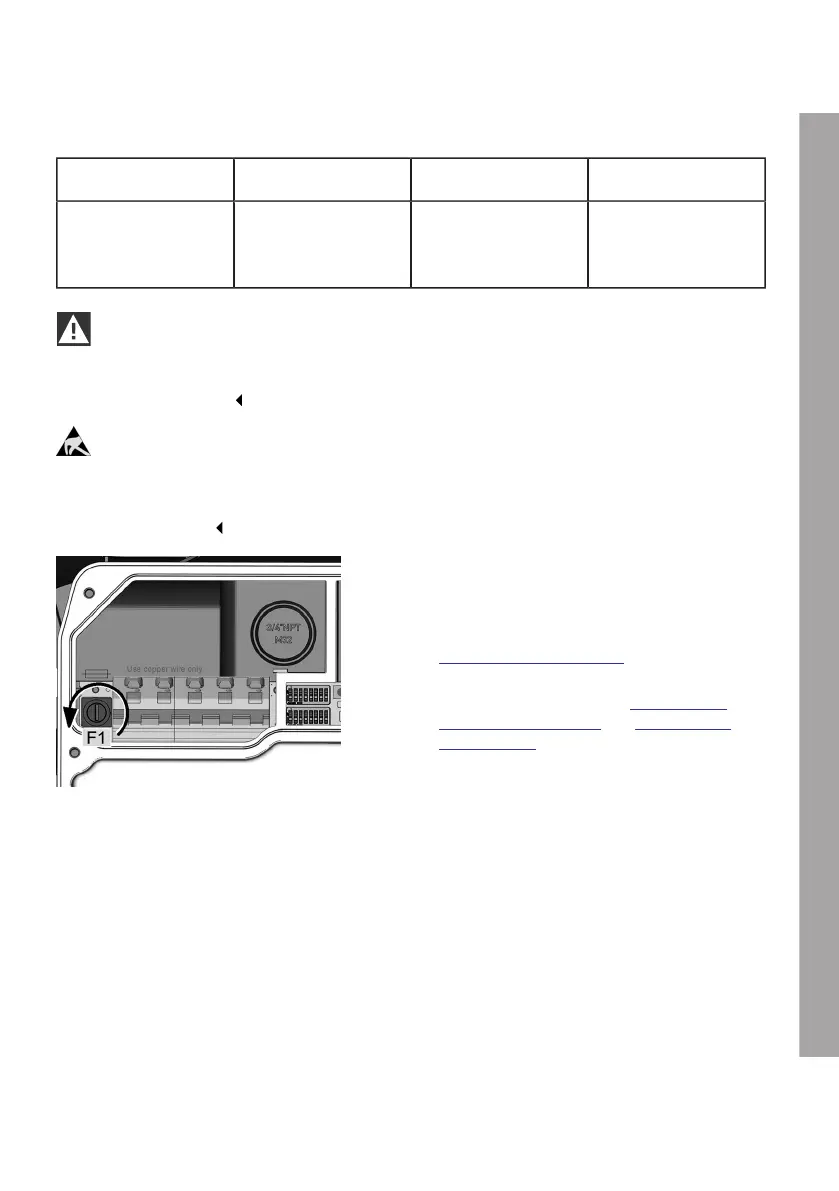

Replace fuse
1. Switch off the supply cable to the Wallbox
completely.
2. Remove the housing cover, see section
Remove the housing cover.
3. Remove the terminal panel cover and terminal
cover, see sections entitled Removing the
termination panel cover and Removing the
terminal cover.
4. Press a screwdriver into the opening of the
fuse holder.
5. Turn the fuse holder anti-clockwise until it
automatically jumps forward due to the spring.
6. Replace the fuse.
7. Press the fuse holder into place and secure it
again by turning it clockwise.
8. Assemble the device again following the
instructions above in reverse order.
EN
53
