99

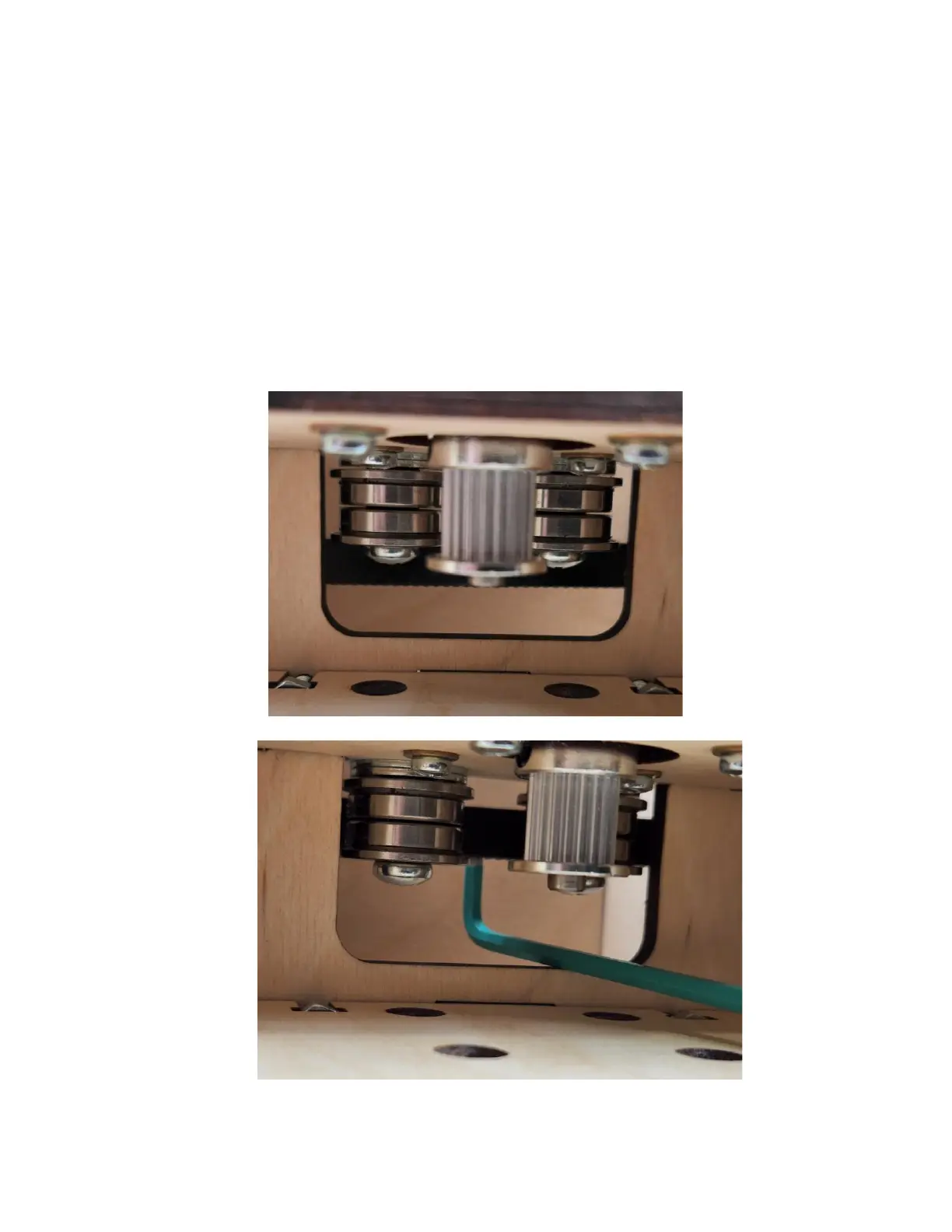

Step 3j Pull the slack belt tight and notice its location
behind the GT2 Pulley and the Idler Pulleys.
Gently position the Belt behind the Idler
Pulleys. Using a long L-end wrench or a stiff
piece of wire (e.g., AWG 12 solid core copper
wire), bend a small hook into one end of the
wire.) slip the L-end behind the Belt and pull it
between the Idler Pulleys and create a loop.
