61
Illustrated Step by Step Instructions

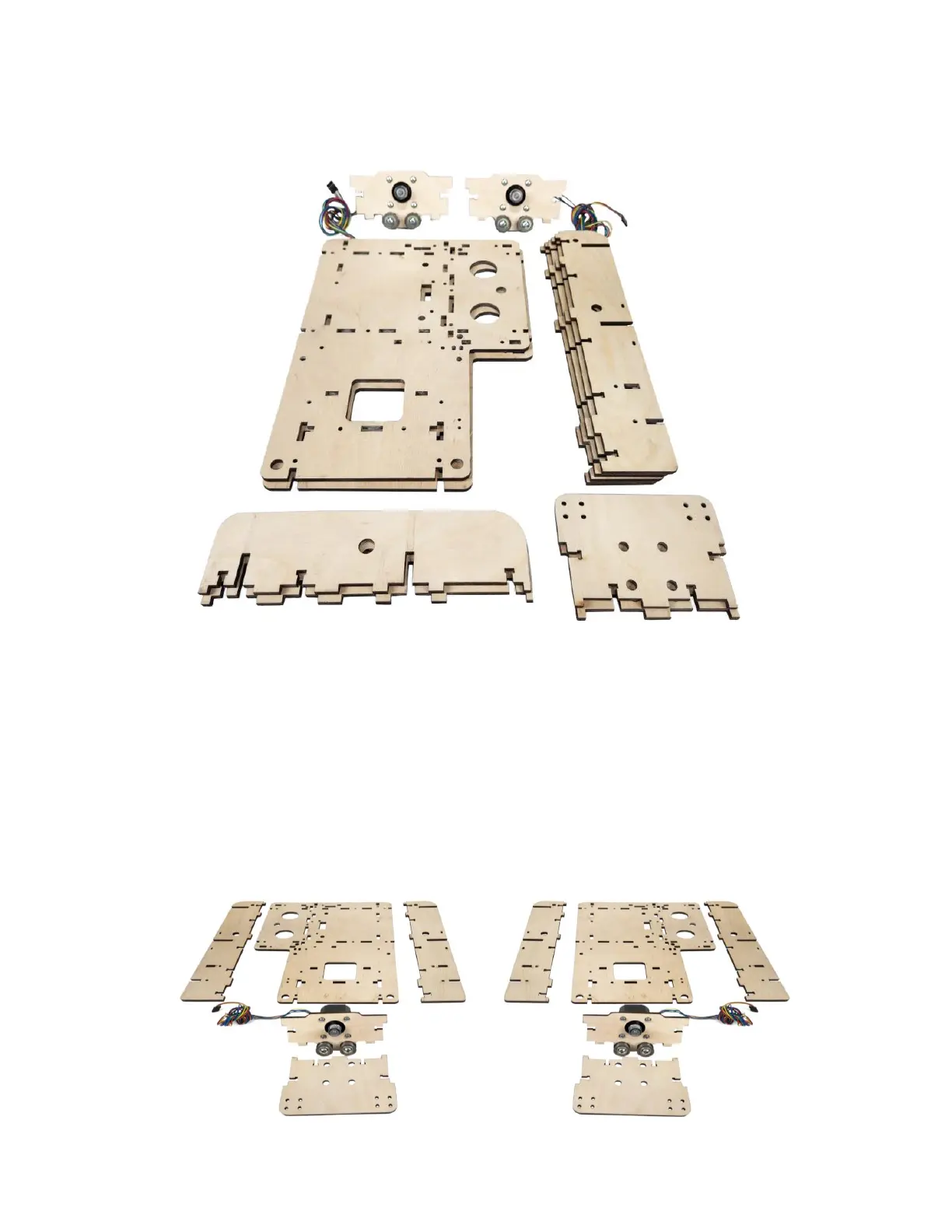

Step 1 Building the Gantry Side Assemblies.
NOTE: The two Side Assemblies will mirror each other when
completed. Prior to assembly, orient the parts of the side
you are building as shown.
