Required Hardware
Part
#
Description
Qty
H14
M4 x 16 Machine
Screw
60
H15
M4 Nut
60
Illustrated Step by Step Instructions

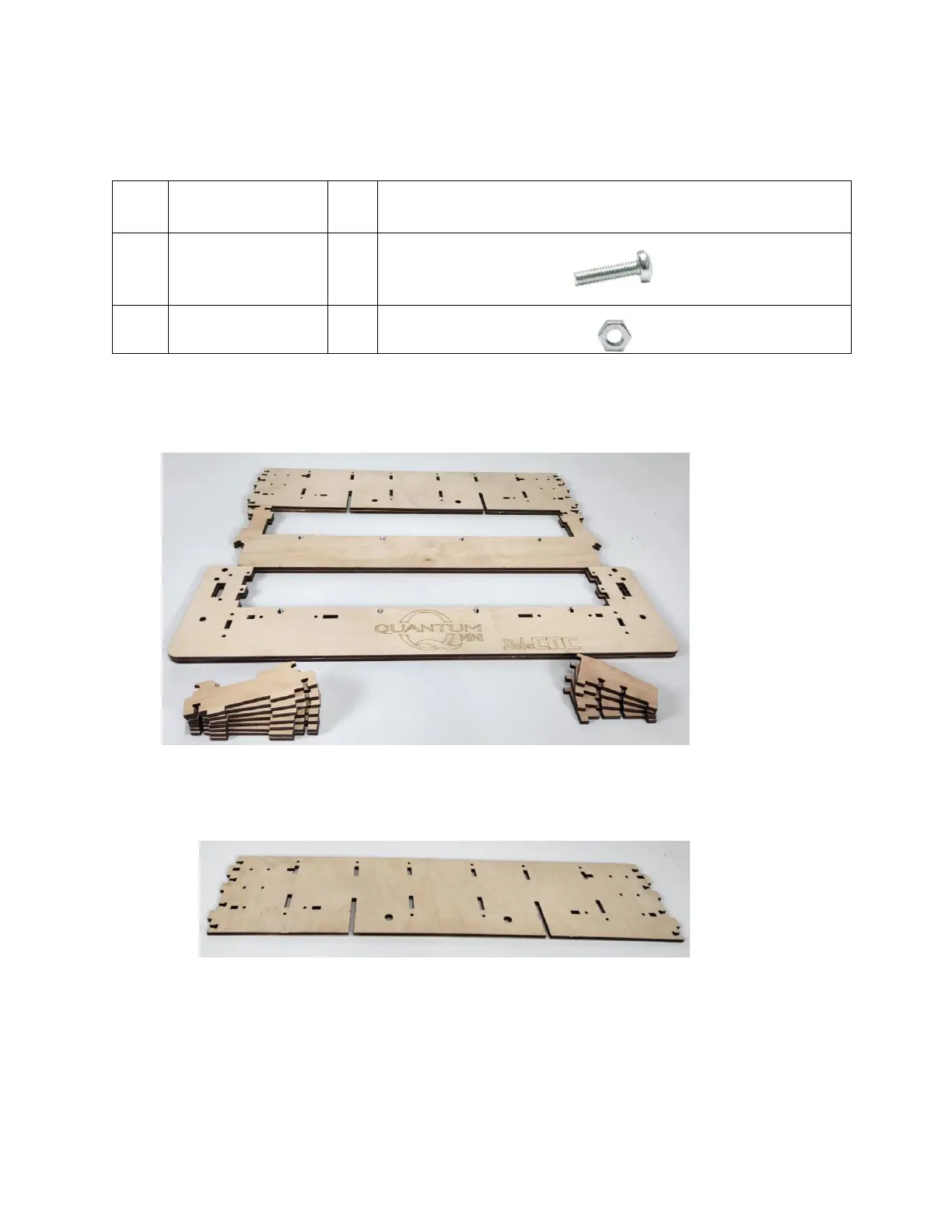

Step 1 Build the Side Assemblies.
IMPORTANT: The long, open slots in the Frame Side
Support (QX5M) are oriented toward the bottom of
the X Frame Assembly.
