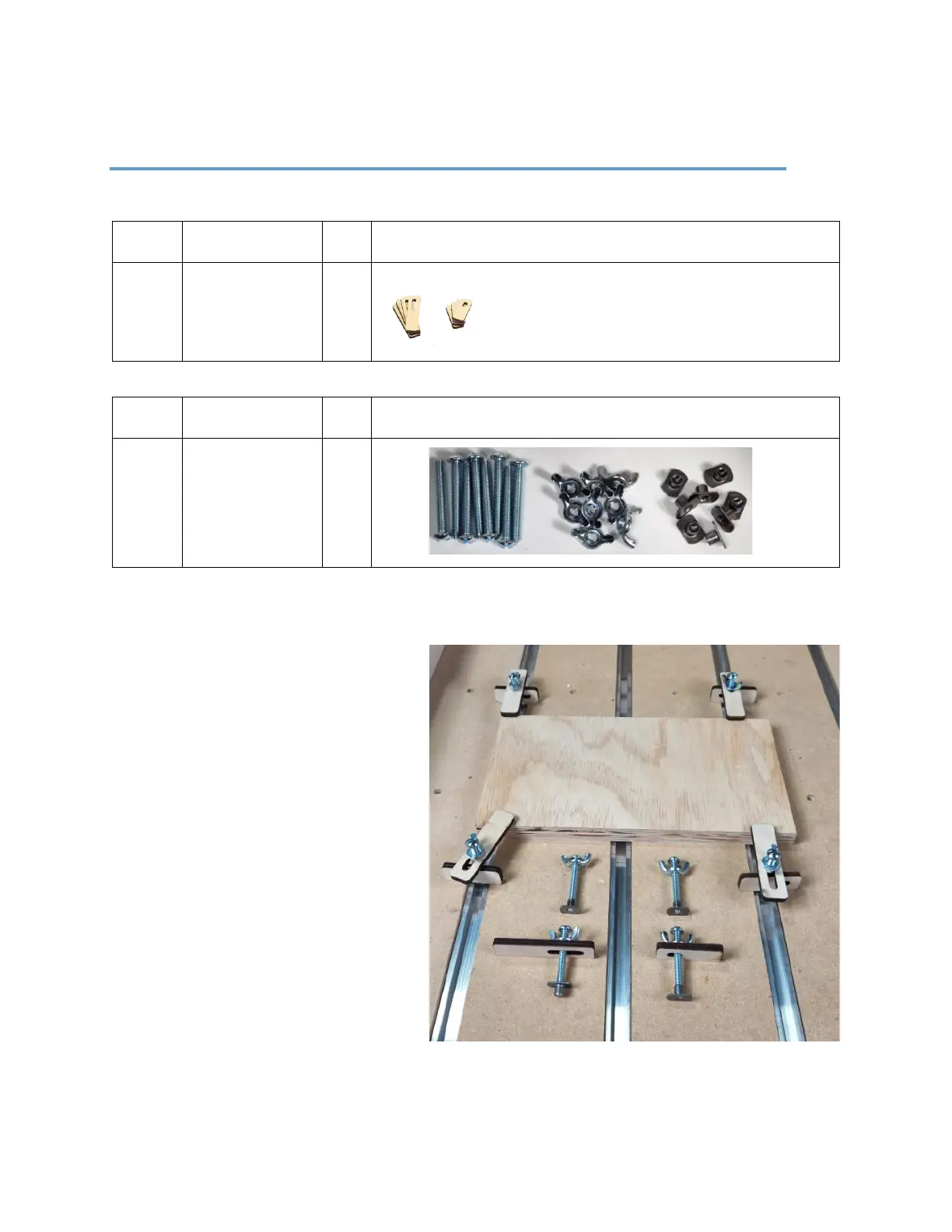

BobsCNC QUANTUM MINI User Manual

134
Clamping System
Wood Components (Included with Kit)
Part #
Description
Qty
A1
A2
Clamp (long)
Clamp (short)
4
4
Required Hardware
Part #
Description
Qty
H9
H45
H62
1/4- 20, 2”
Screws,
Wingnuts, and
T-Nuts
8
ea.
A
BobsCNC supplies wooden
clamps that are secured to the
spoilboard in conjunction with
¼ x 20 2” Screws and Wingnuts
(H9). The T-Nuts slide into the
aluminum T-Slots and can be
tightened within the slot. The
Wingnuts tighten the wooden
clamps against the workpiece
to hold it in position during the
cutting process.
