133

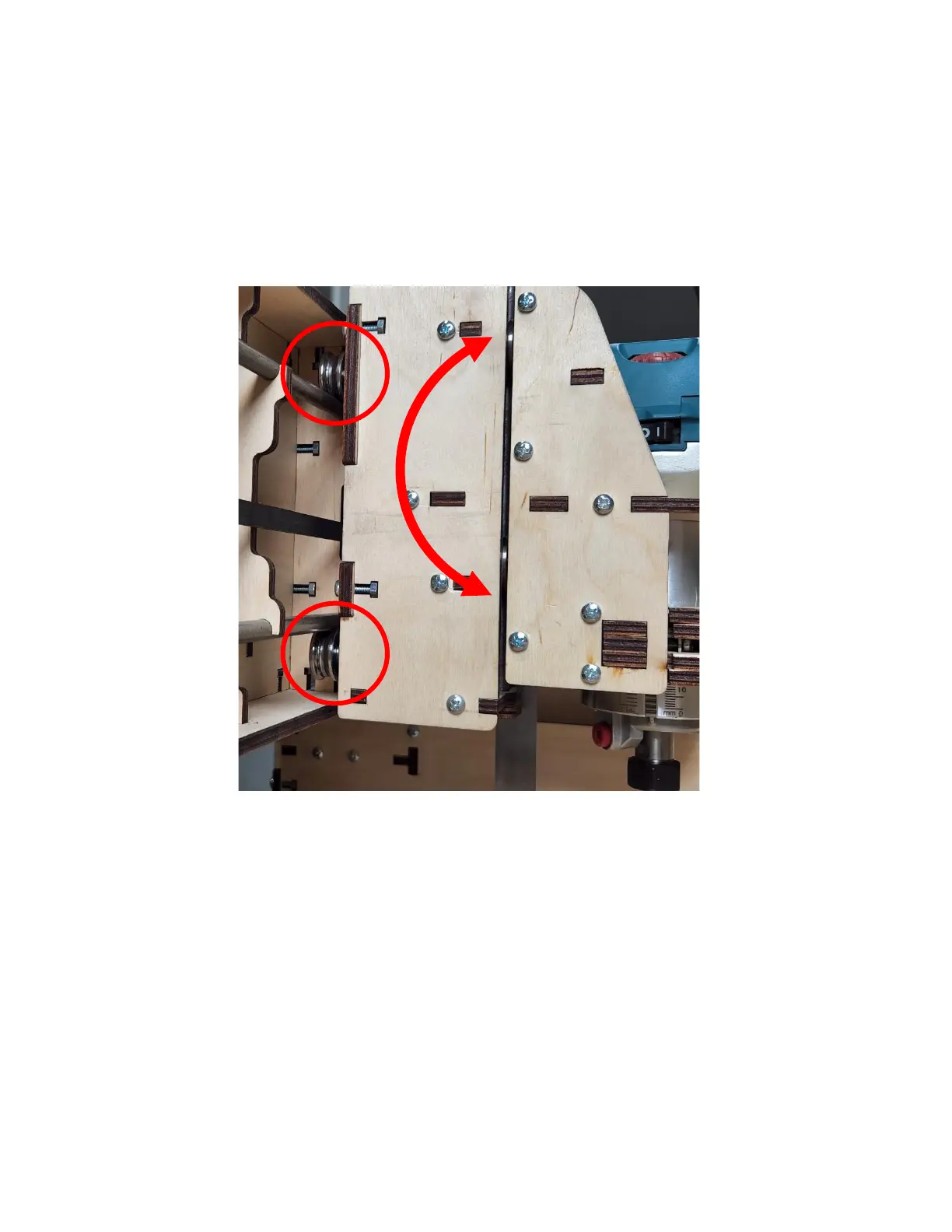

The Spindle (Router) can be trammed on the Y axis by placing shims
behind the SG20U Bearing Fender Washer on the upper or lower Y
Assembly. Placing the shim on the top will tilt the axis clockwise.
Placing the shim on the bottom will tilt the axis counterclockwise.
