116

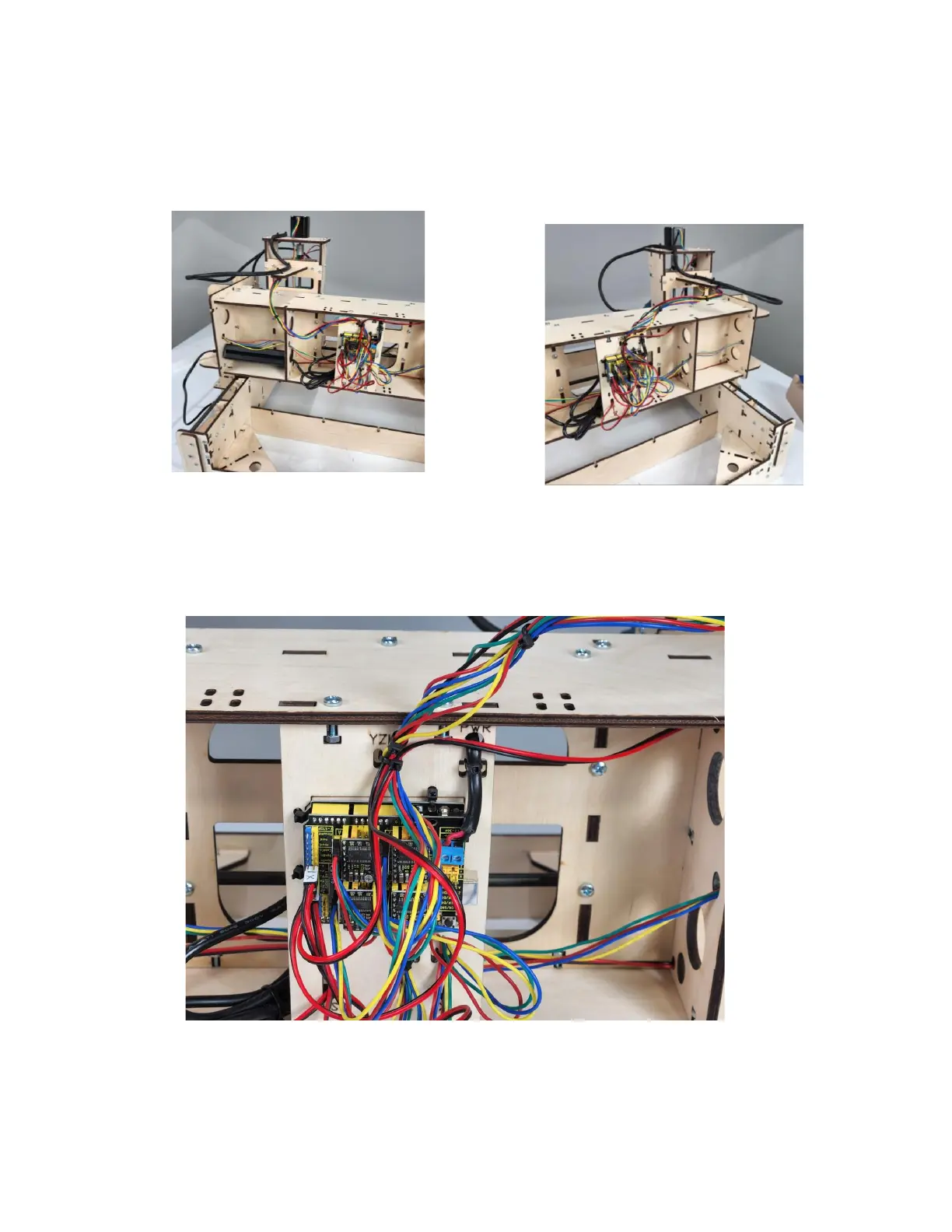

Bundle enough wire so that when the harness is attached
to the Controller Mount, the Y Carriage can travel back and
forth across the Gantry without pulling on the wires.
Secure the wires to the Controller Mount with a Zip Tie to
the “YZ HS” mounting holes
