BobsCNC QUANTUM MINI User Manual

122
Step 11 Connecting the Stepper Motors to the
Controller.

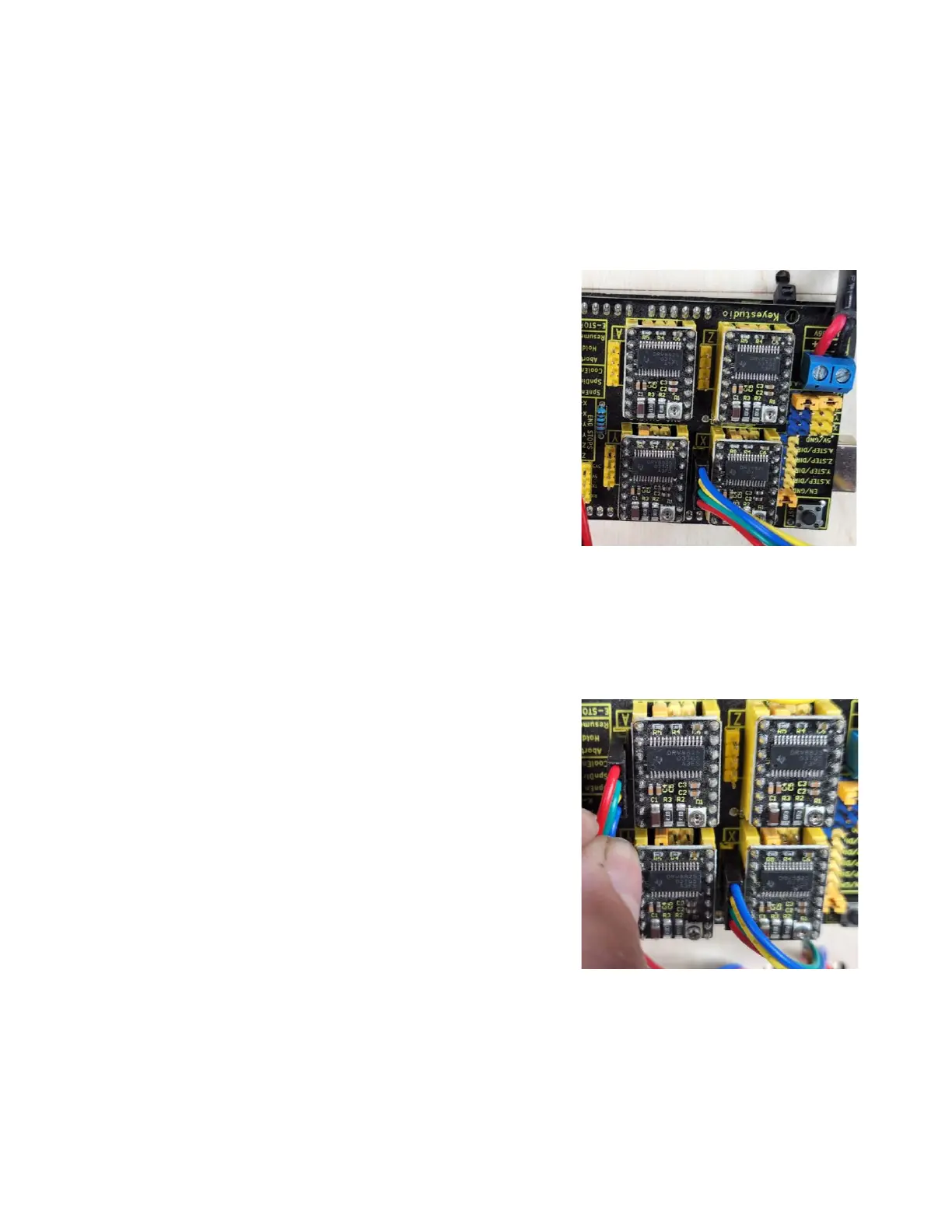

Step 11a Connect the X1 Stepper
Motor to the pins of
the “X” driver on the
Controller. Make sure
the blue wire is at the
top.
Step 11b Connect the X2 Stepper
Motor to the pins of
the “A” driver on the
Controller. Make sure
the red wire is at the
top.
