30

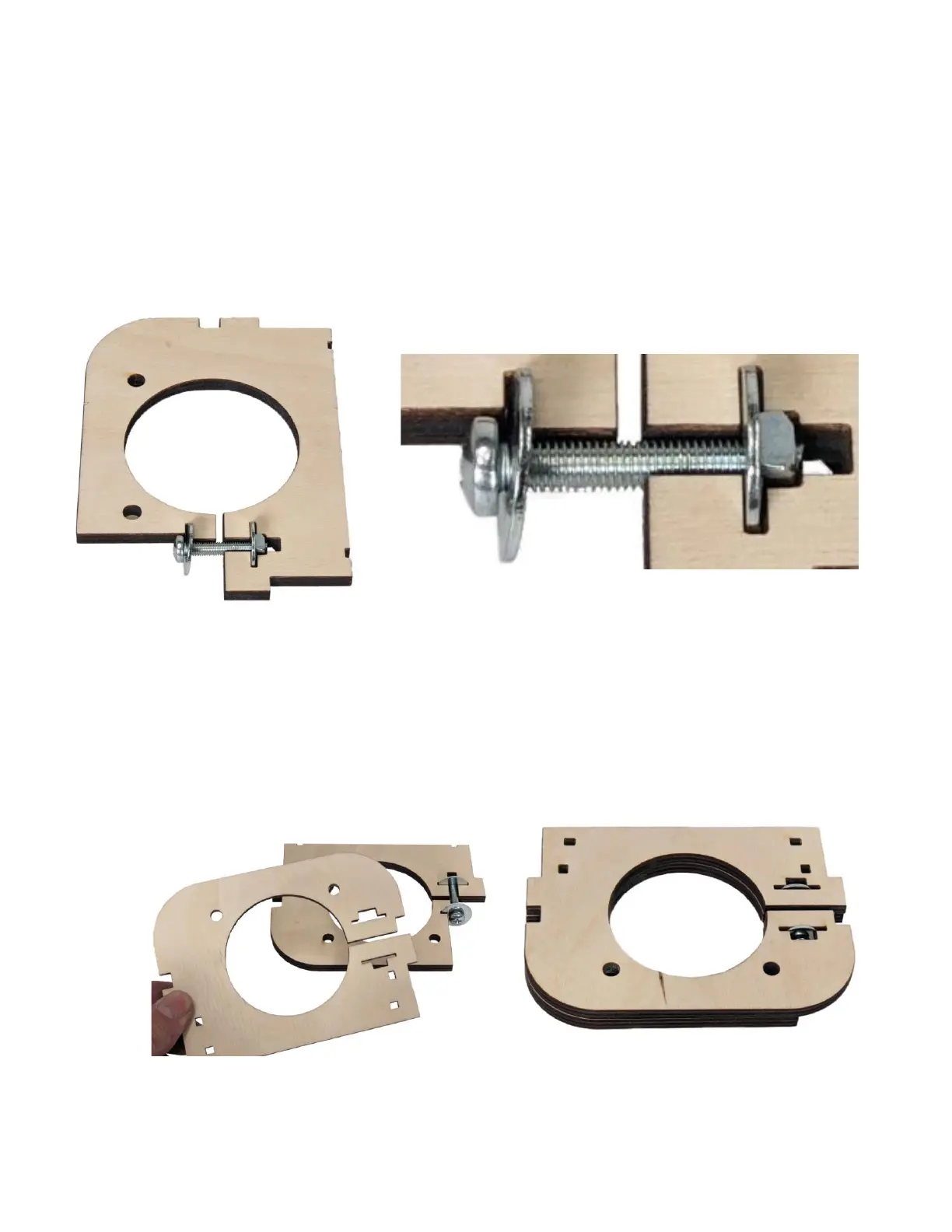

Step 2b Place the Screw, Nut and Washer Assembly
into the Inner Spindle Mount (QZ5). Be sure
the Square Nut and Washers are nested into
their slots, as shown.
Step 2c Position the Mid Spindle Mount (QZ6) over
the Inner Spindle Mount and the Screw, Nut
and Washer Assembly, as shown.
