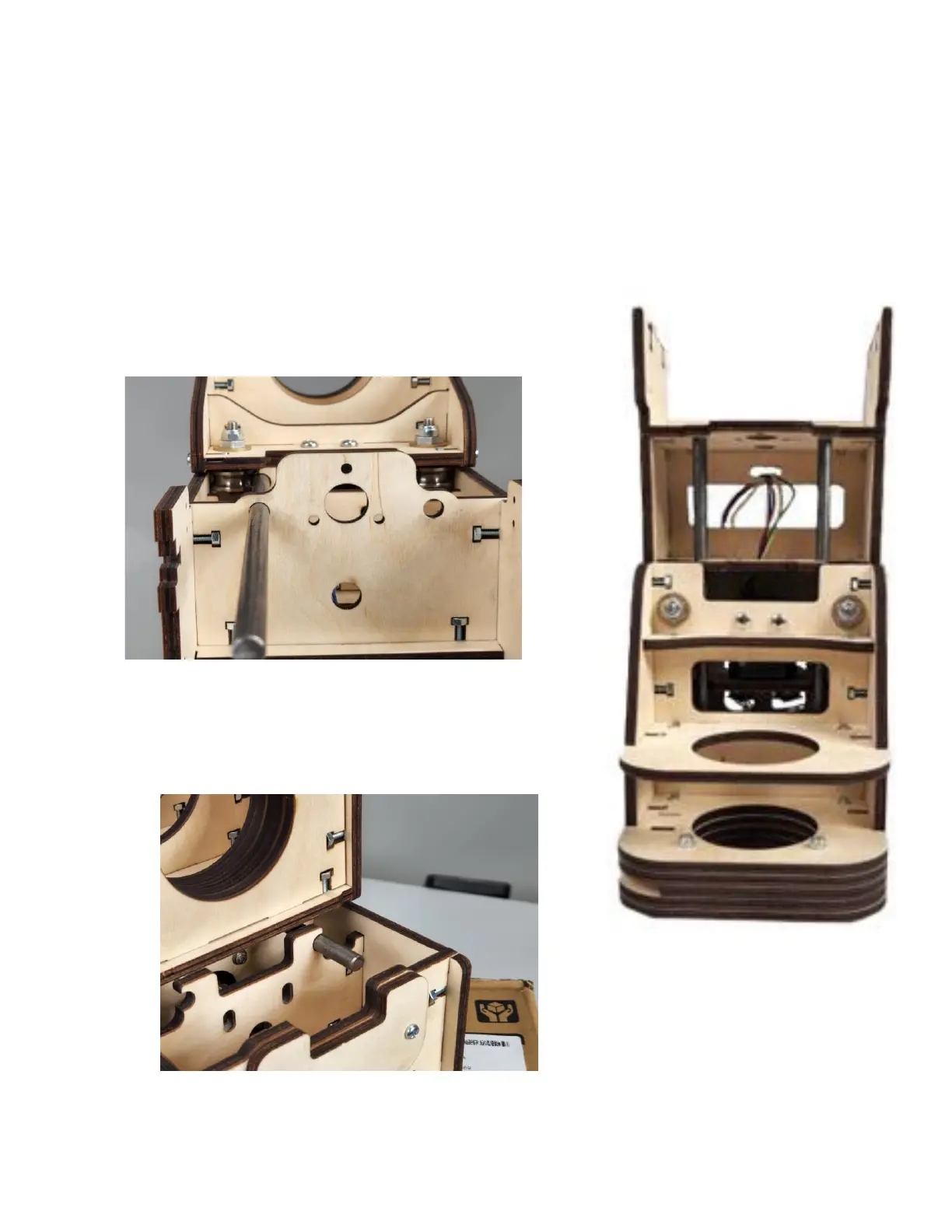

Step 3c Carefully slide the Z Rail (H54) through the

hole in Carriage Top Support (QY2), through

both Outer Rail Supports (QY8) and past the

Bearings until it is seated at the bottom of the

Y Carriage Assembly.

Top View

Bottom View
