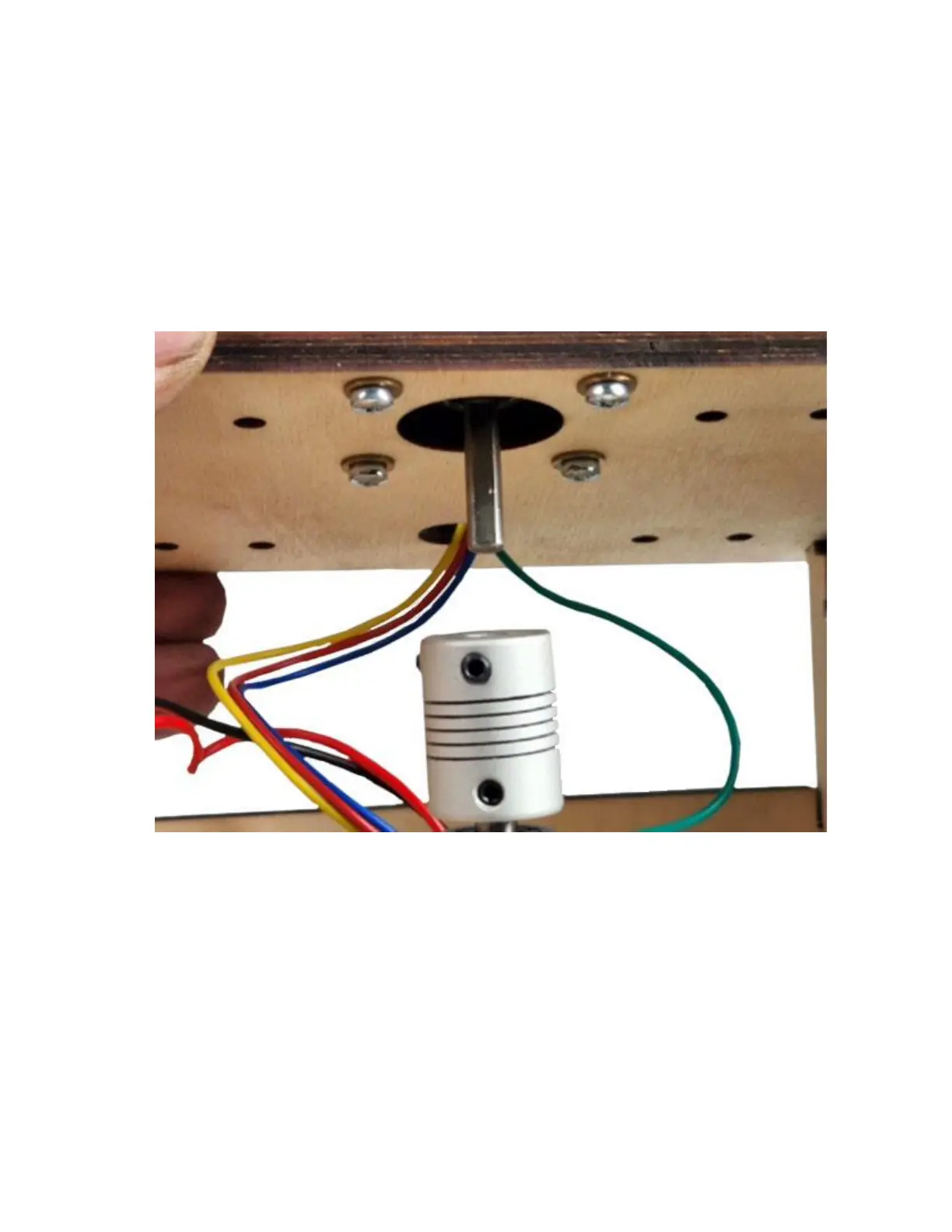

Step 6c Before aligning the tabs of the Carriage
Frame Assembly with the slots in the Z
Stepper Motor Mount, make sure that
the flat of the Stepper Motor shaft lines
up with a Set Screw in the Helical
Coupler as shown.
