69

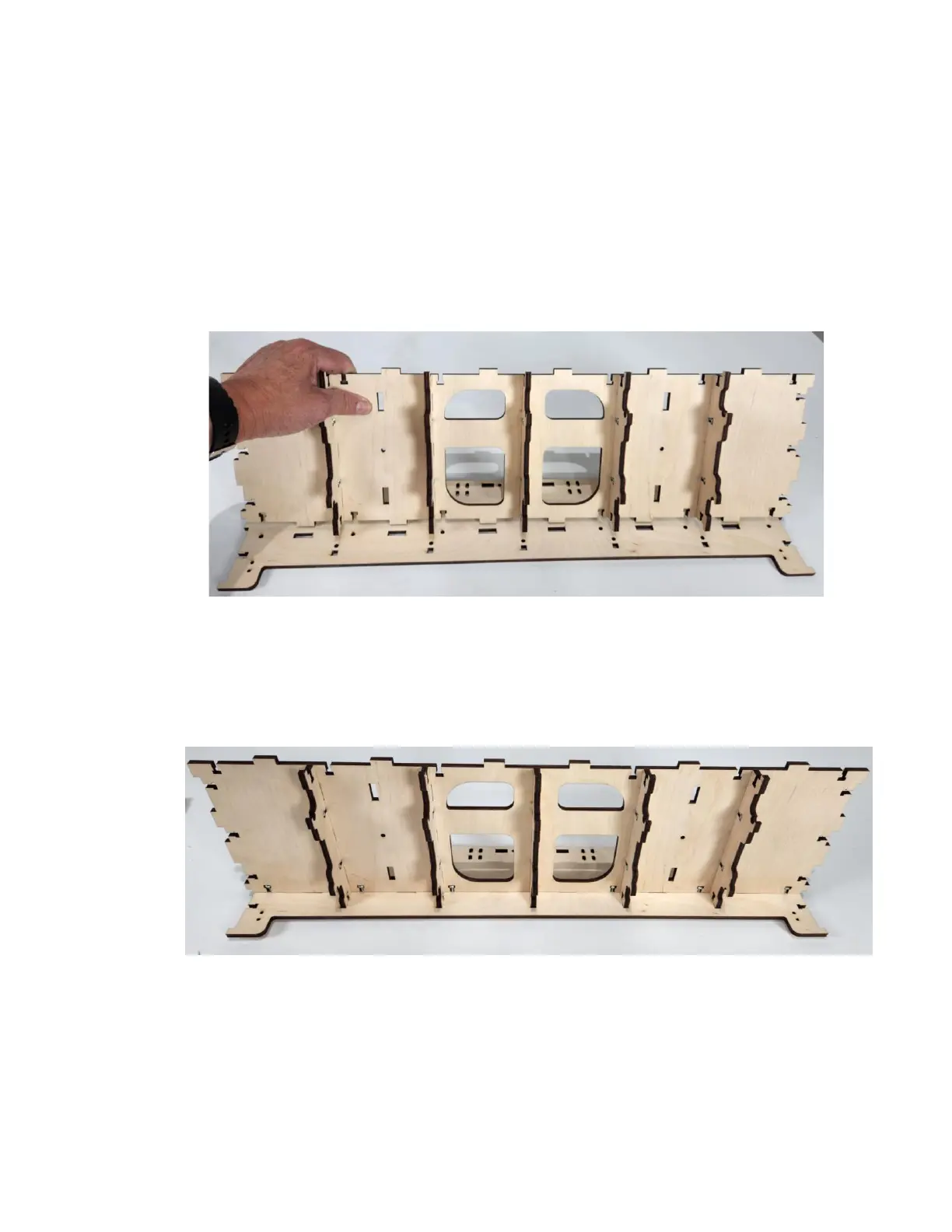

Step 2b Align the tabs and slots of the Gantry Bottom
Brace (QG8M) with the Gantry Frame
Assembly. Secure with eleven M4 x 16
Machine Screws and Nuts.
