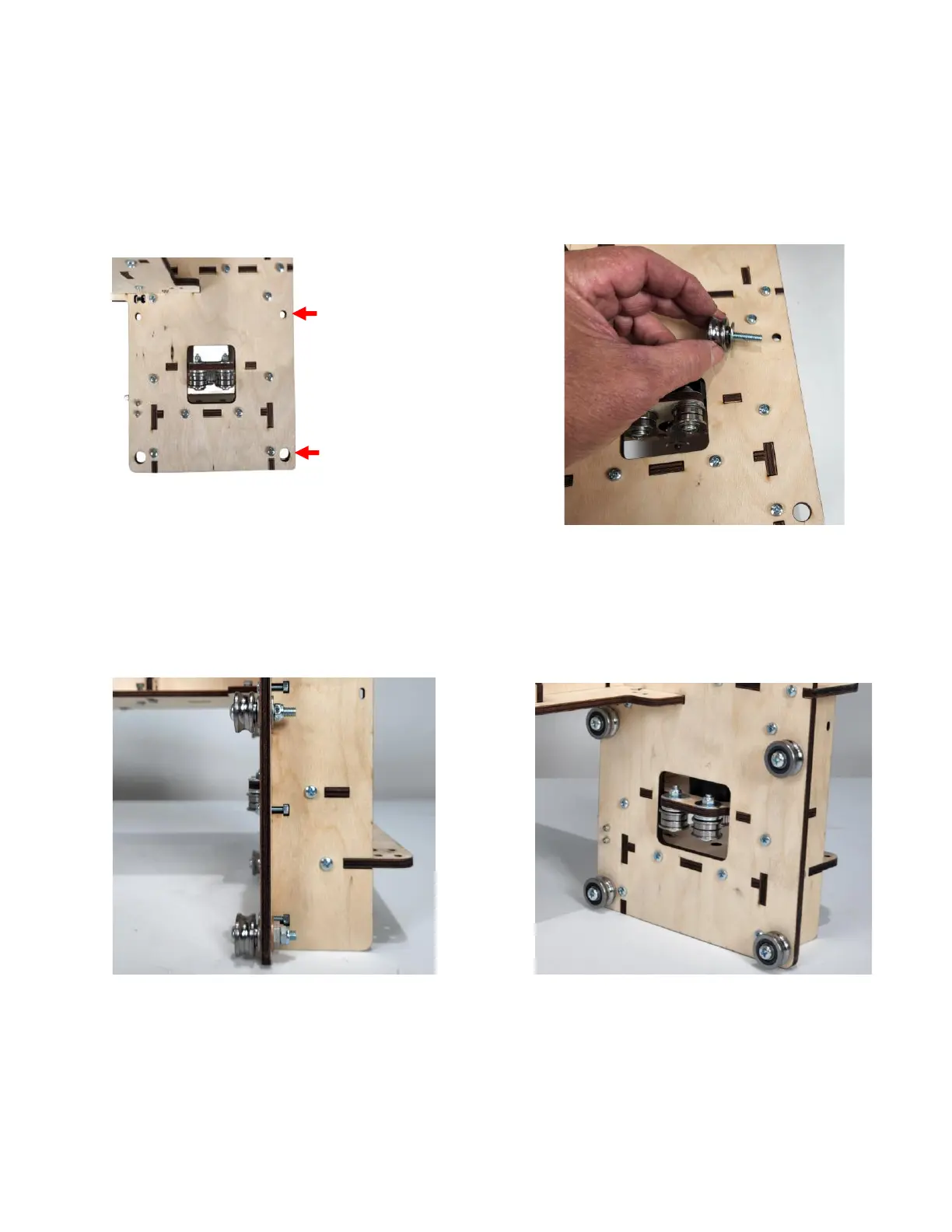

Step 7 Attach the upper and lower SG20U Bearing
Assemblies to each of the Gantry Side Assemblies.
UPPER BEARINGS
LOWER
BEARINGS
(With Eccentric
Spacers)
