BobsCNC QUANTUM MINI User Manual

84

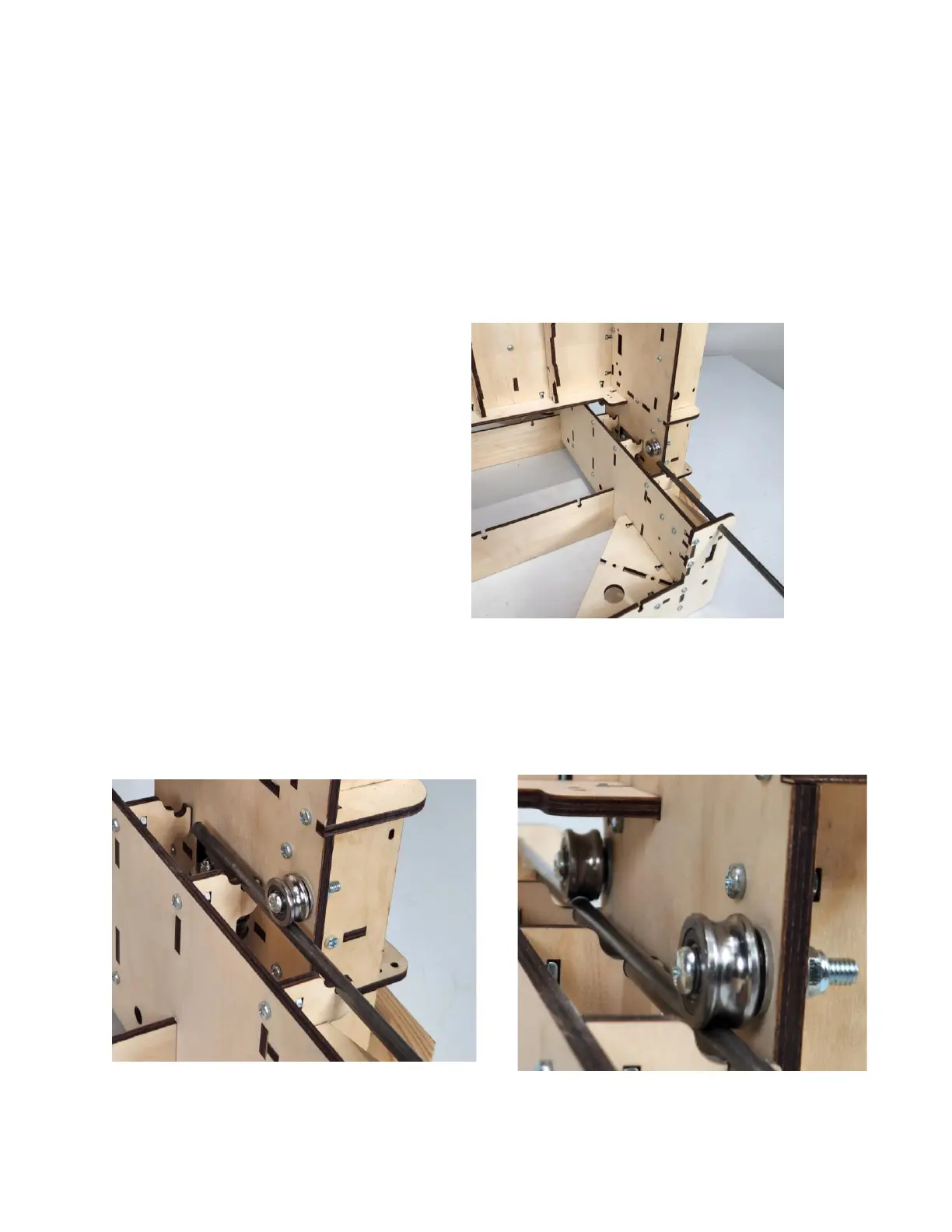

Step 8b Insert the Rail into and through the upper
access hole in the Frame End Support and the
Rail supports so that the Upper Bearing rest
on the rails. Continue inserting the Rail until it
is fully nested in the rear Frame Support.
Lift the Gantry Side so that the rail slides beneath both top bearings.
Insert the Rail completely so that the ends of the Rail are seated flush
in the Front and Back End Supports
