1.3 Presentation of the product
1.3.1 Description
The BOXPRO is an interface solution that allows:
- to retrieve and transmit match data from the SCOREPAD keyboard to the TV protocol (the TV
protocol is duplicable to be broadcast to several receiving equipment),
- to exchange match data between the SCOREPAD keyboard and the EBStats PC.

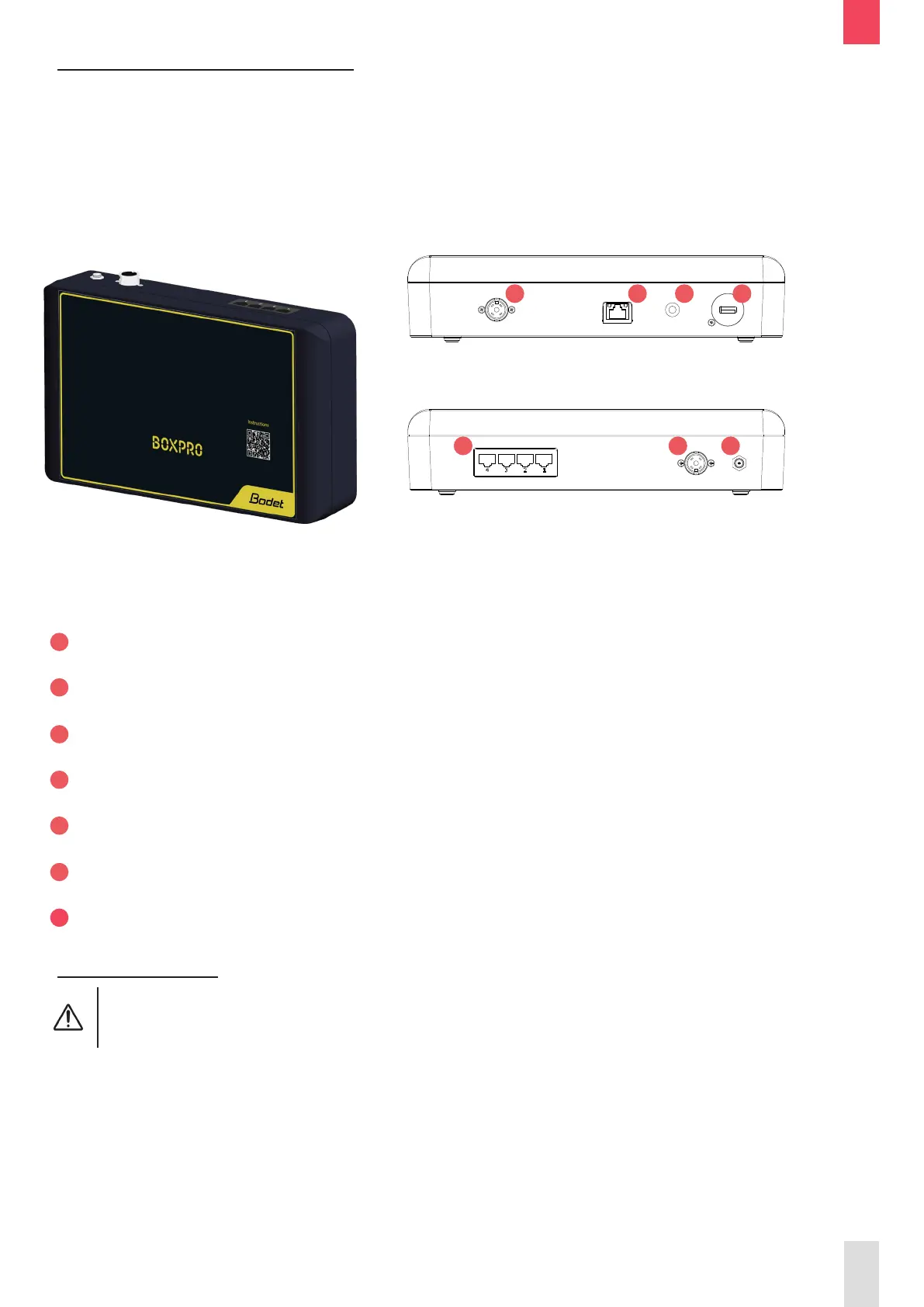

1.3.2 Connections and interface
567
1 2 3 4
Front view
Rear view
No. Description Function
1
DIN socket
DATA communication with SCOREPAD main keyboard
2
RJ45 socket
IP communication with SCOREPAD main keyboard
3
Status LED
Indication of the BOXPRO status
4
USB port
Export of the BOXPRO conguration
5
Jack socket
Power supply (15 VDC)
6
DIN socket
DATA communication to Bodet scoreboards
7
RJ45 sockets (X4)
Protocol outputs
1.4 Prerequisites
In order to work, the rmware versions of the SCOREPAD main keyboard and
the BOXPRO must be identical.
Refer to the user manual 607976 to update your SCOREPAD keyboard and to chapter
4.2 Update procedure of this user manual to proceed with the BOXPRO update.
