6. Installation examples

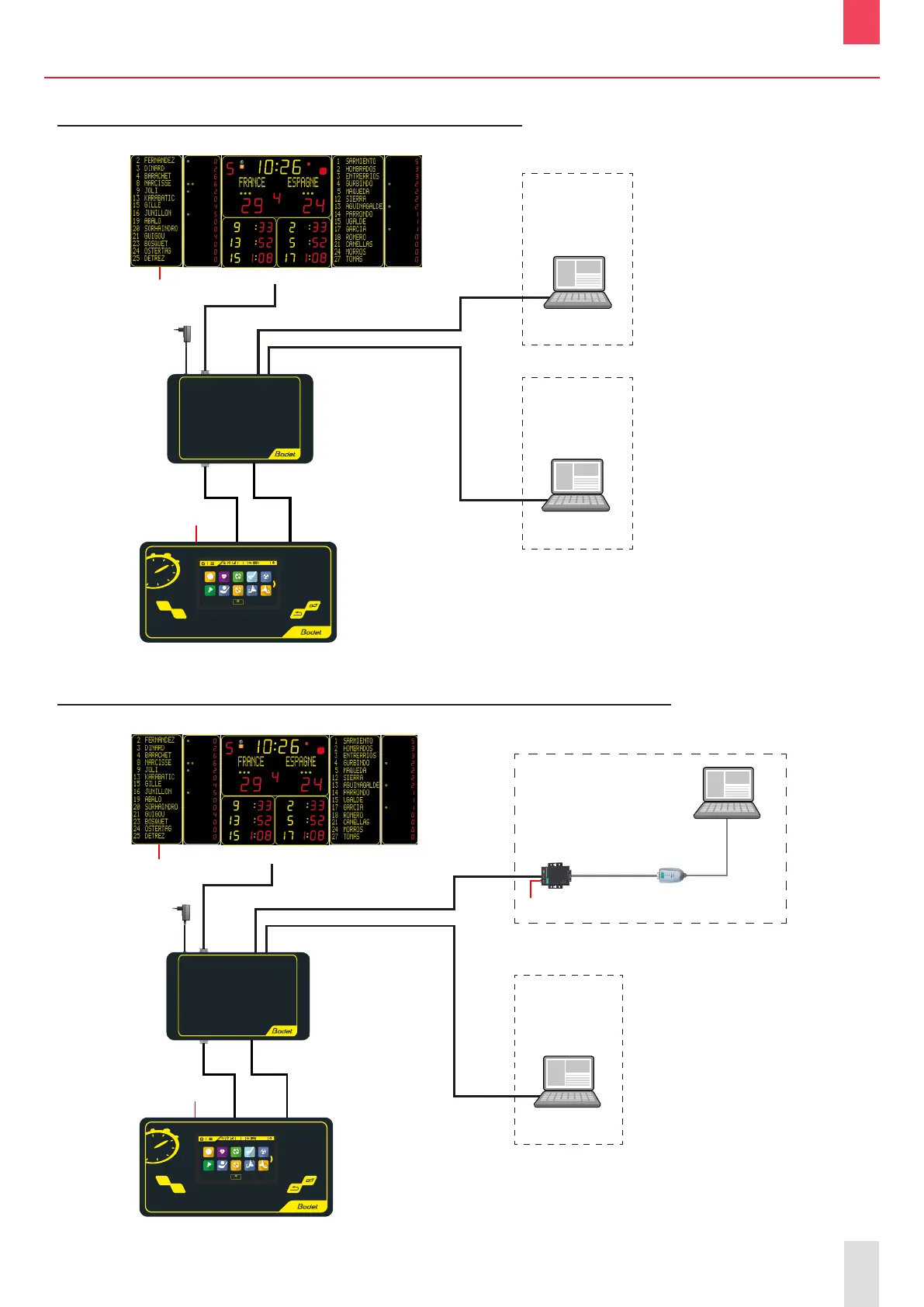

6.1 Connecting protocols directly to the BOXPRO
BOXPRO
SCOREPAD
START
STOP
FOOTBALL HANDBALLBASKETBALL
FLOORBALL INLINE HOCKEY RINK HOCKEYBADMINTON
TRAINING
HOCKEY SUR
GLACE
FUTSAL
10:12
Message
100%
Mini-DIN to DIN
cable
RJ45 cable
Power supply
15VDC
SCOREPAD main keyboard
BOXPRO interface
DIN cable
to Scoreboards
RJ45 cable
Power supply
Power supply.
TV control PC
Product not included.
TV PROTOCOL
Product not included.
EBStats PROTOCOL
RJ45 cable
EBStats PC
TV
EBStats
6.2 Connecting the TV protocol with the Moxa interface (optional)
BOXPRO
SCOREPAD
START
STOP
FOOTBALL HANDBALLBASKETBALL
FLOORBALL INLINE HOCKEY RINK HOCKEYBADMINTON
TRAINING
HOCKEY SUR
GLACE
FUTSAL
10:12
Message
100%
Mini-DIN to DIN
cable
RJ45 cable
Power supply
15VDC
SCOREPAD main keyboard
BOXPRO interface
DIN cable
to Scoreboards
RJ45 cable
RS232 cable
USB cable
Power supply
Power supply
MOXA IP interface
MOXA USB interface
TV control PC
Products not included.
TV PROTOCOL
RJ45 cable
Power supply
TV
Product not included.
EBStats PROTOCOL
EBStats PC
EBStats
