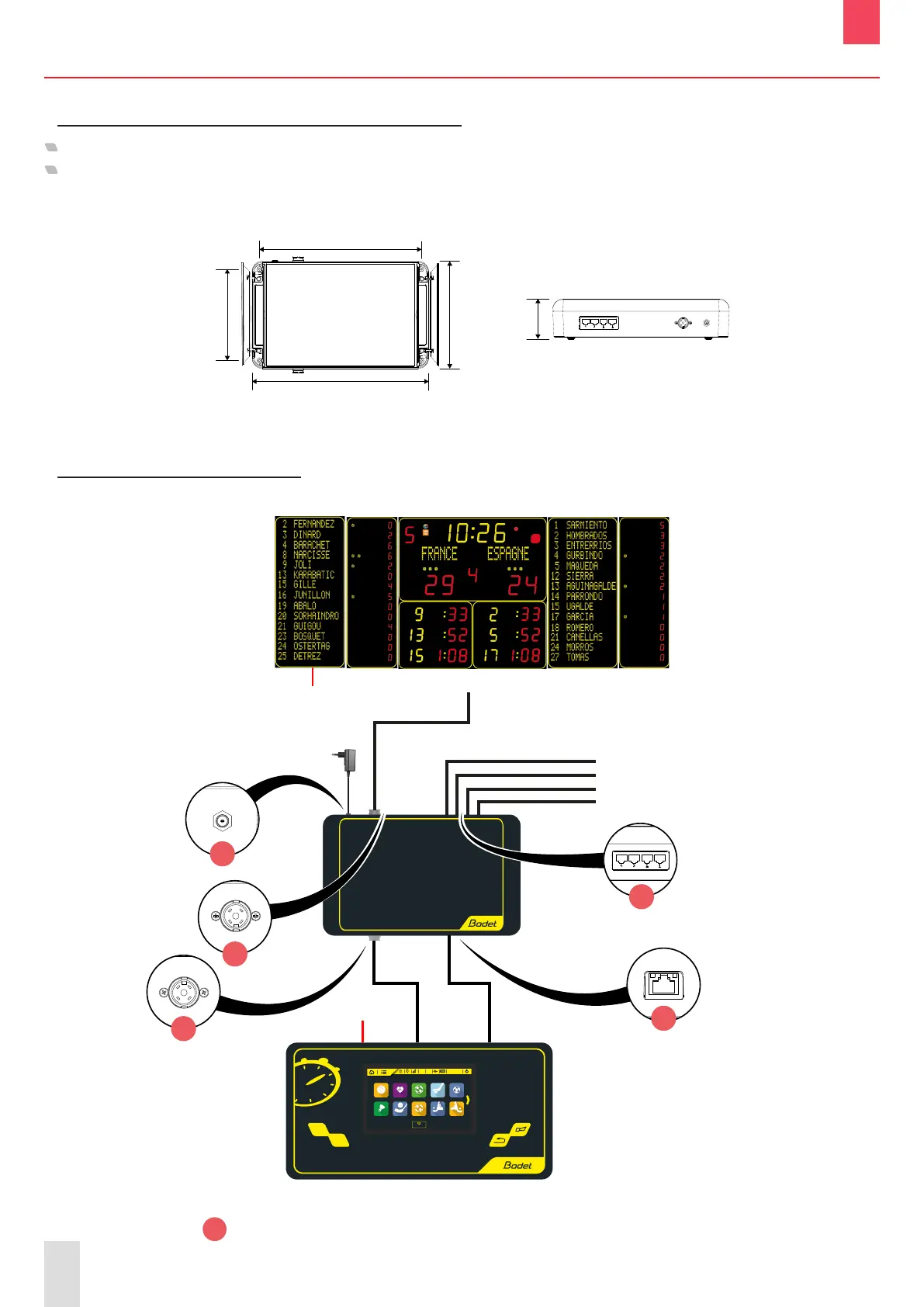

2. Installing the equipment
2.1 Mechanical installation of the BOXPRO
Open the 2 hatches on each side of the box to access the mounting holes.
Attach the box according to the dimensions below: 4 screws (not supplied) Ø 3.5 mm (Ø screw
head: 7 mm max.). Wall plugs to be adapted according to the recommended screws and the
mounting bracket.
166
259
114
276
60
BOXPRO
Dimensions in mm.
Length of the power cord: 1.5 m.
2.2 BOXPRO connections
Below are the connections to be made:
BOXPRO
SCORE PAD
START
STOP
FOOTBALL HANDBALLBASKETBALL
FLOORBALL INLINE HOCKEY RINK HOCKEYBADMINTON
TRAINING
HOCKEY SUR
GLACE
FUTSAL
10:12
Message
100%
Mini-DIN to DIN
cable*
RJ45 cable*
Power supply
15VDC*
SCOREPAD main keyboard
BOXPRO interface
DIN cable*
to Scoreboards
RJ45 cable(s)
Power supply
Power supply
TV PROTOCOL
EBStats PROTOCOL
to
5
6
7
2
1
* supplied with the BOXPRO
Note: the numbers
X
correspond to those of chapter 1.3.2 Connections and interface.
