Bodet Scorepad User Manual

24

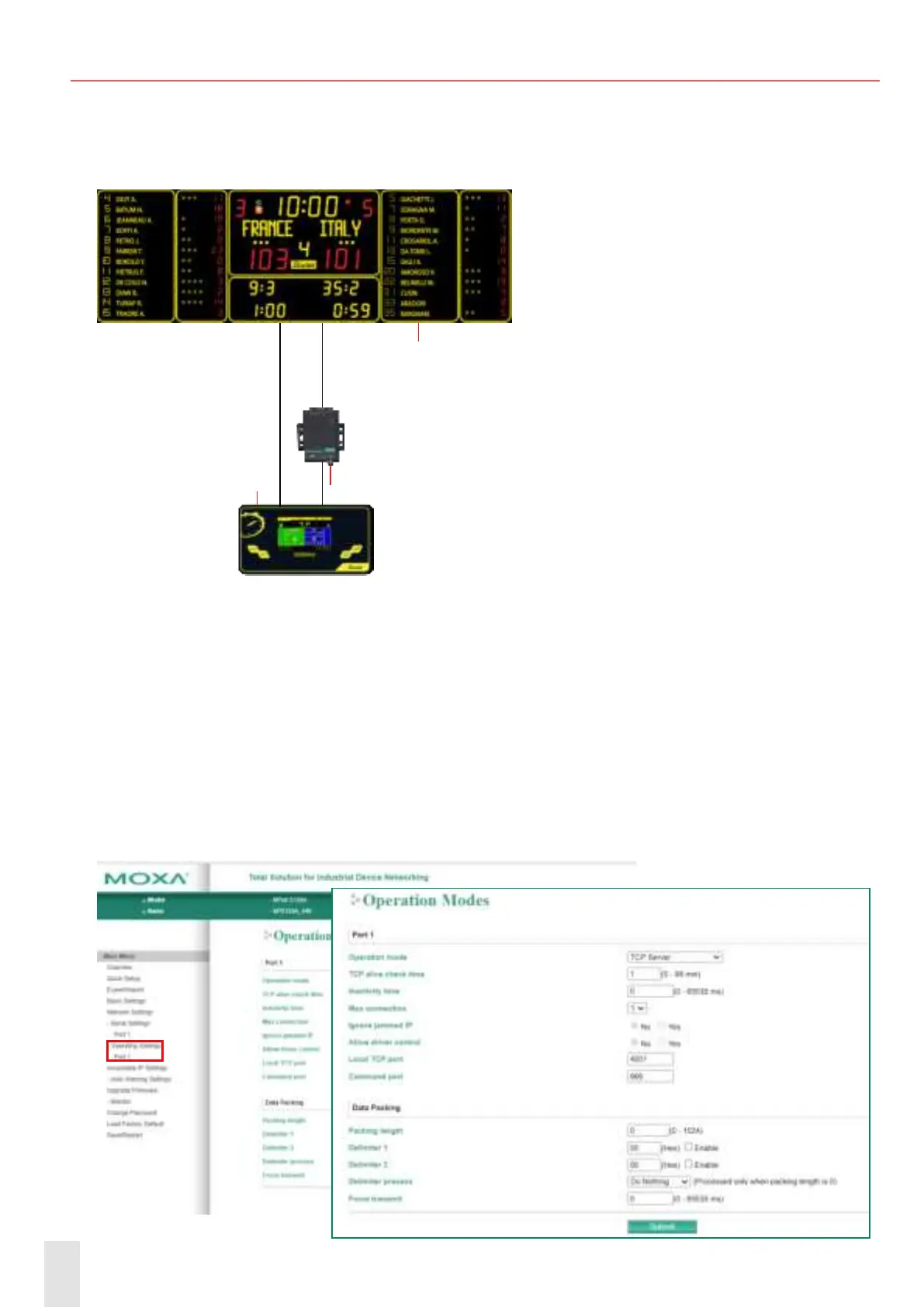

14. Configuring an Alpha interface
The Alpha interface allows you to congure team and player names of a Bodet scoreboard from the
SCOREPAD keyboard:
Scorepad keyboard
Alpha interface
RS485 to Alpha cards
Power supply
Power supply
Power supply
RS485 to scoreboard card
RJ45
Conguration and commissioning:
Step 1: Alpha interface conguration
1) Make sure you have congured the PC on the same network as the interface.
2) Open the Internet browser to the interface IP address. The default IP address of the interface is listed
on the back of the product.
3) Password: moxa
4) Left menu: Operating Settings > port 1
