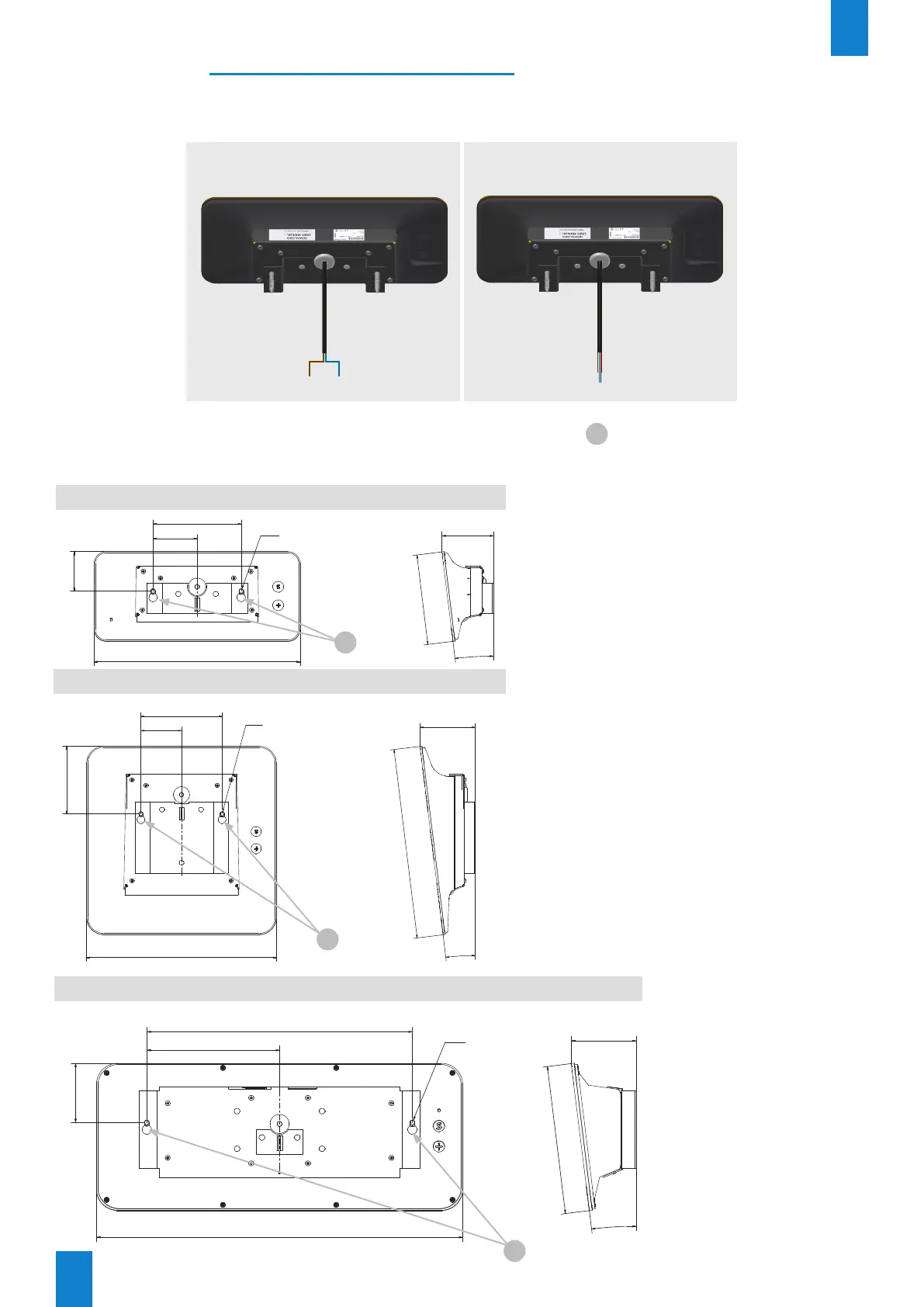

2.4 Mounting - Style 7-7D-10 waterproof IP55
1) The clock is supplied wired and assembled. Before fitting it to the wall, connect the clock to the
time distribution network in a dry environment.
2) Attach the clock to the wall using the 2 hexagon-head screws
1
(used to tighten the bracket to
the wall) with a Ø4mm dowel:
EN
Brown
Blue Black
Red
Brown Blue
Style 7
Style 10
Style 7 Date
137
61
80
140
7°
320
R3.5
68.5
375
84
517
R3.5
91.5
209
7°
187.5
137
320
320
68.5
R3.5
93
114
7°
1
1
1
IMPULSE and AFNOR synchronisationINDEPENDENT, DHF and RADIO (FI, DCF)
synchronisation:
Power supply: L N
Power supply: L N
Synchronisation
Brown
Blue Black
Red
Brown Blue
