Bofan PT600X - Basic Structure; Specification

3

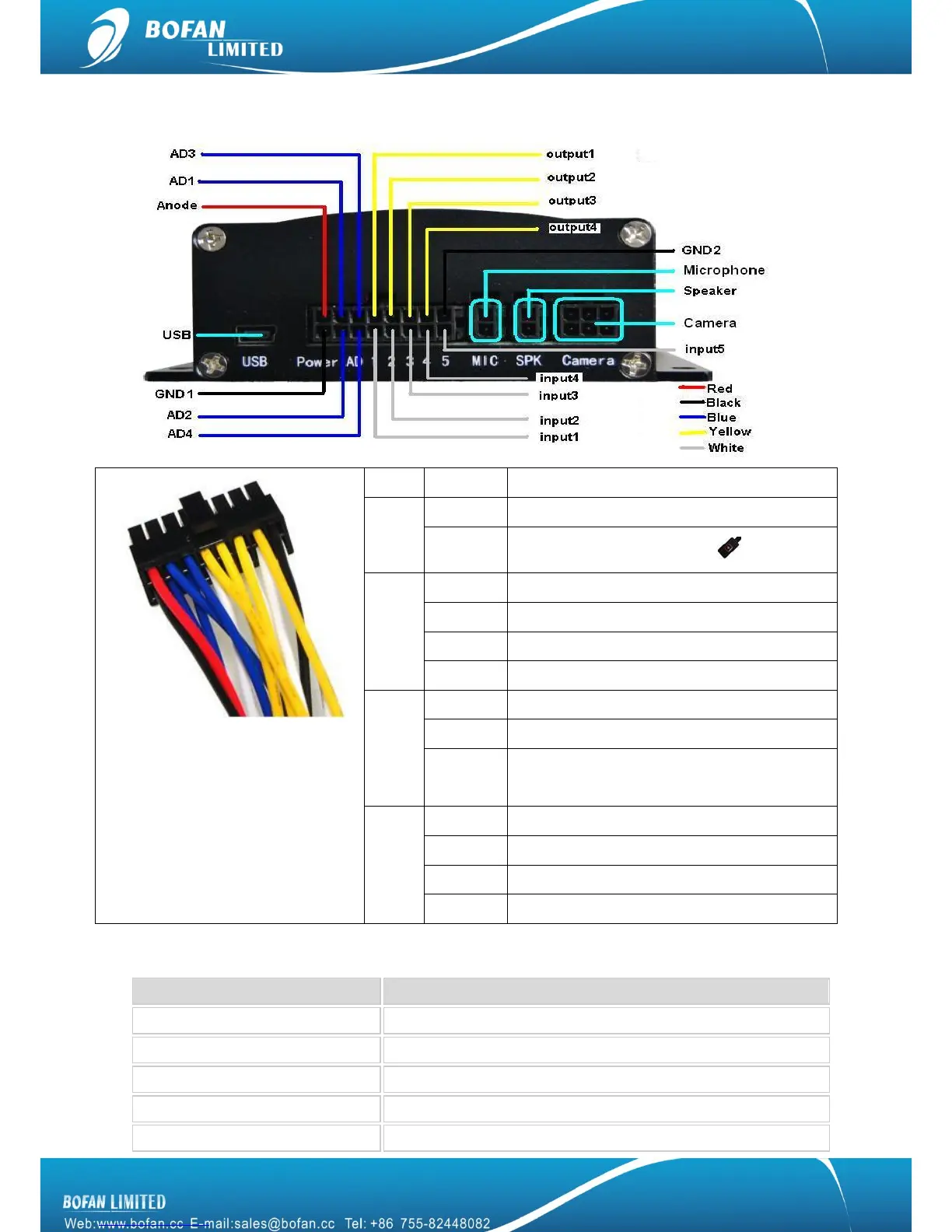

2.2 Basic Structure
Red
Anode
Ext. Power(+)
Black
GND1
Ext. Power(-) / GND
GND2
Be connected to SOS button
Blue
AD1
Can connect to fuel sensor
AD2
Can connect to temperature sensor
AD3
Can connect to alcohol sensor
AD4
Can connect to any other analog input sensor
Yellow
Output1
Can connect to relay
Output2
Can connect to buzzer
Output3/4
Can connect to any other OC output control
accessories
White
Input1
Be connected to SOS button
Input2/3
Low frequency electric effective
Input4
Must be connected to vehicle ignition
Input5
High frequency electric effective
2.3 Specification
Items
Specifications
Weight
0.23KG (only for main tracker, without accessories)
Dimensions
88(L)x 83(W) x 35(H) mm
Input Voltage
DC 9V~36V/1.5A
Back-up Battery
600mAh/3.7v
Power Consumption
50mA standby current
