BOGE Operating instructions for scroll compressors, series EO 6...EO 22 D Page 77
Appendix 8.3 Pneumatic circuit diagrams

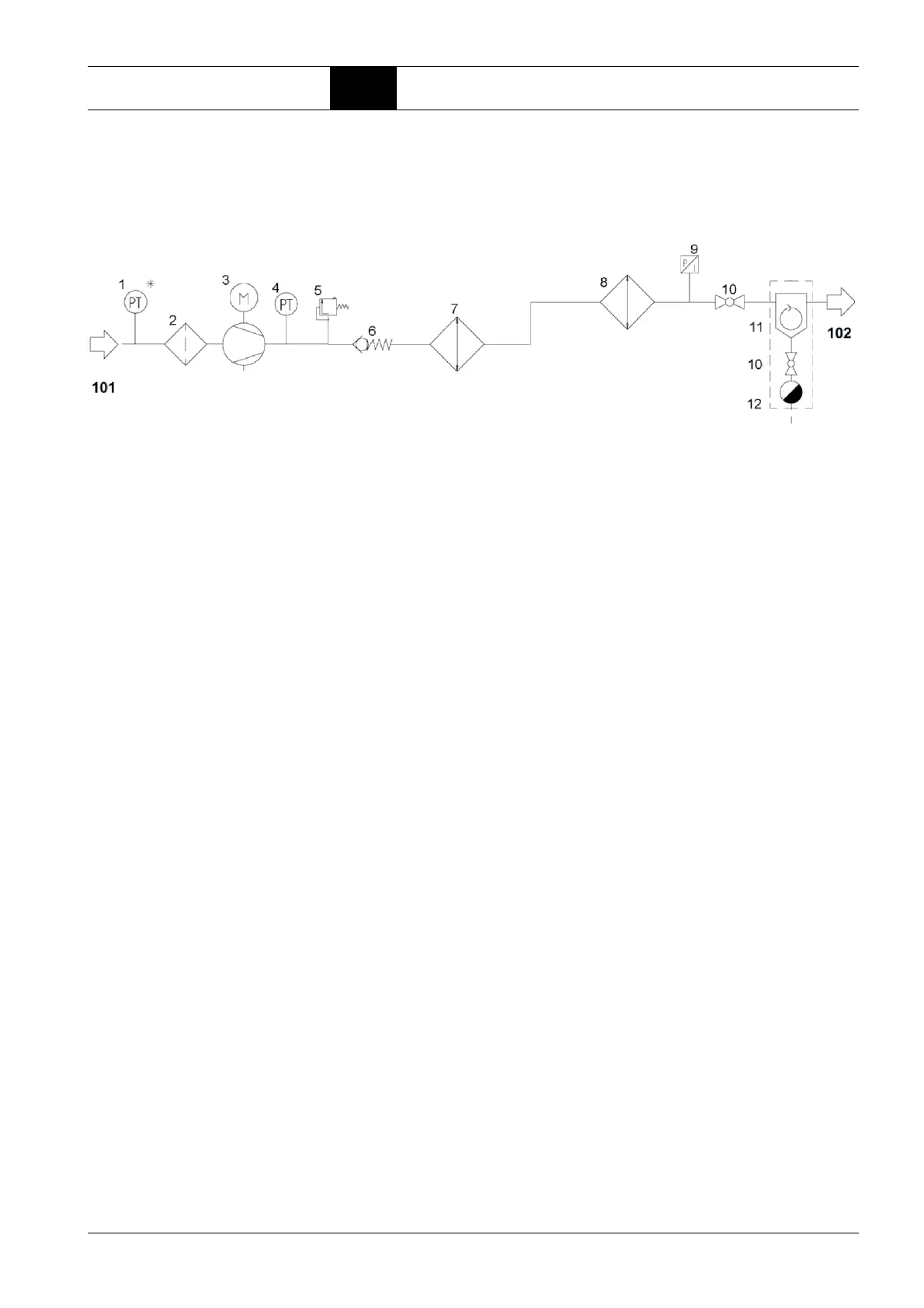

Pneumatic circuit
diagram for EO 6,
air-cooled
101 Intake air INLET
102 Compressed air OUTLET
1 Intake air temperature *
2 Suction filter
3Unit
4 Final compression temperature
5Safety valve
6 Non-return valve
7 Primary cooler
8 Secondary cooler
9 Net pressure
10 Ball valve (option)
11 Cyclone separator (option)
12 Condensate drain (option)
* with focus control 2.0
