Appendix 8.3 Pneumatic circuit diagrams

Page 82 BOGE Operating instructions for scroll compressors, series EO 6...EO 22 D

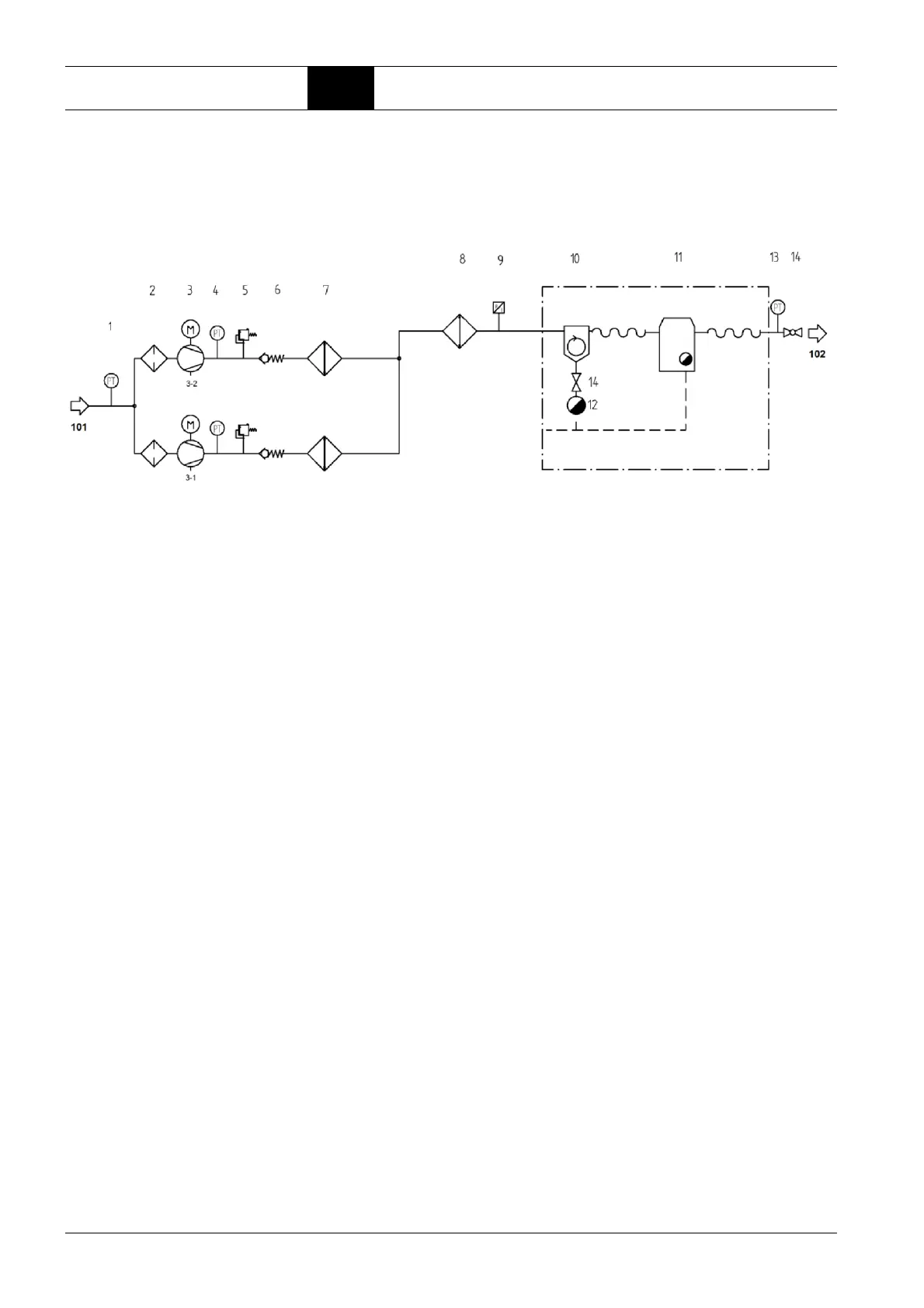

Pneumatic circuit

diagram for EO 11 (D),

air-cooled

101 Intake air INLET

102 Compressed air OUTLET

1 Intake air temperature

2 Suction filter

3 Scroll unit 1, 2

4 Final compression temperature

5 Safety valve

6 Non-return valve

7 Compressed air primary cooler

8 Compressed air secondary cooler

9 Net pressure

10 Cyclone separator (EO 17 D)

11 Refrigerant dryer (EO 17 D)

12 Condensate drain (EO 17 D)

13 Compressed air outlet temperature

14 Shut-off valve compressed air outlet
