BOGE Operating instructions for scroll compressors, series EO 6...EO 22 D Page 83

Appendix 8.3 Pneumatic circuit diagrams

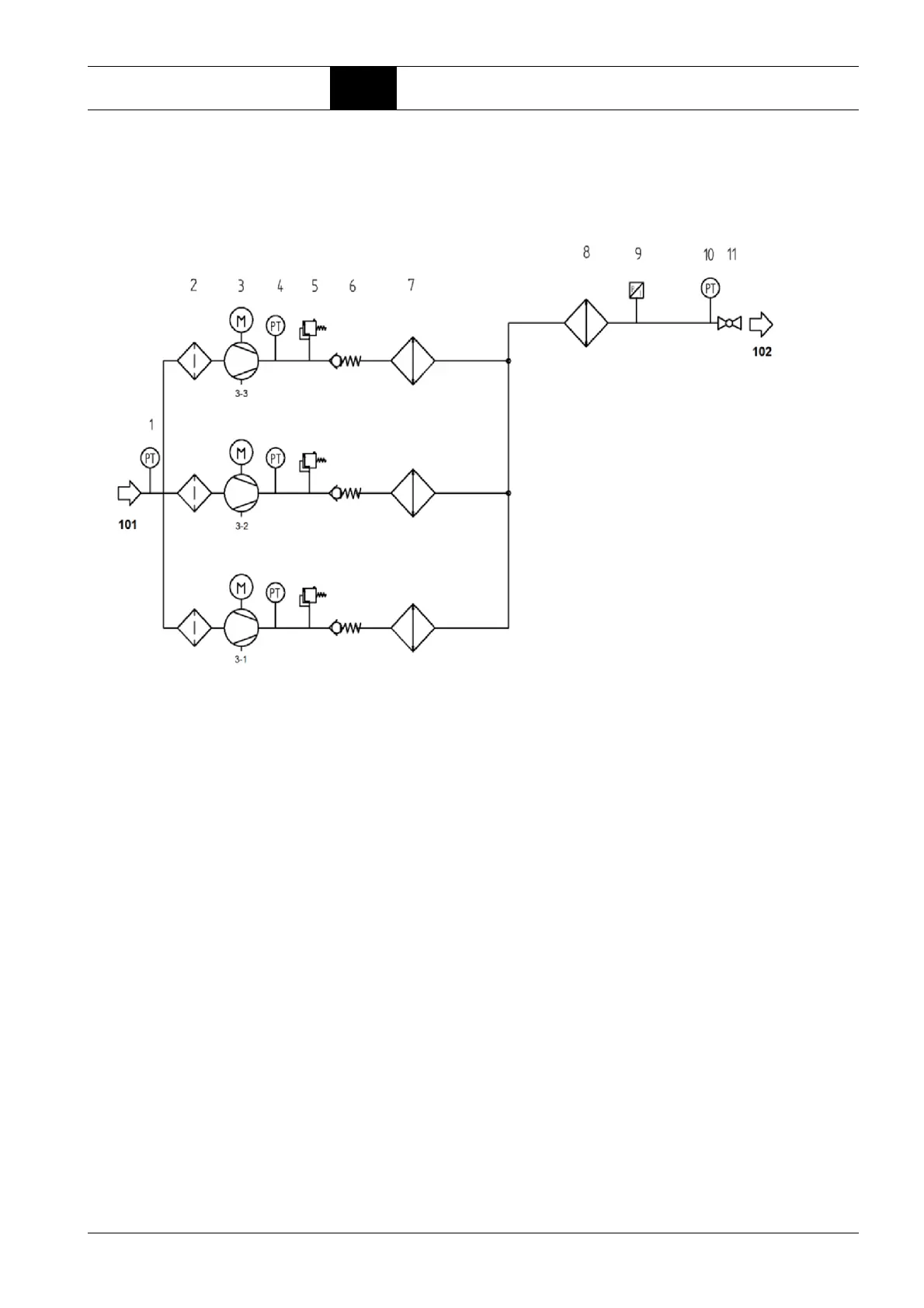

Pneumatic circuit

diagram for EO 16,

air-cooled

101 Intake air INLET

102 Compressed air OUTLET

1 Intake air temperature

2 Suction filter

3 Scroll unit 1,2,3

4 Final compression temperature

5Safety valve

6 Non-return valve

7 Compressed air primary cooler

8 Compressed air secondary cooler

9 Net pressure

10 Compressed air outlet temperature

11 Shut-off valve compressed air outlet
