Page
53
3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
2.4

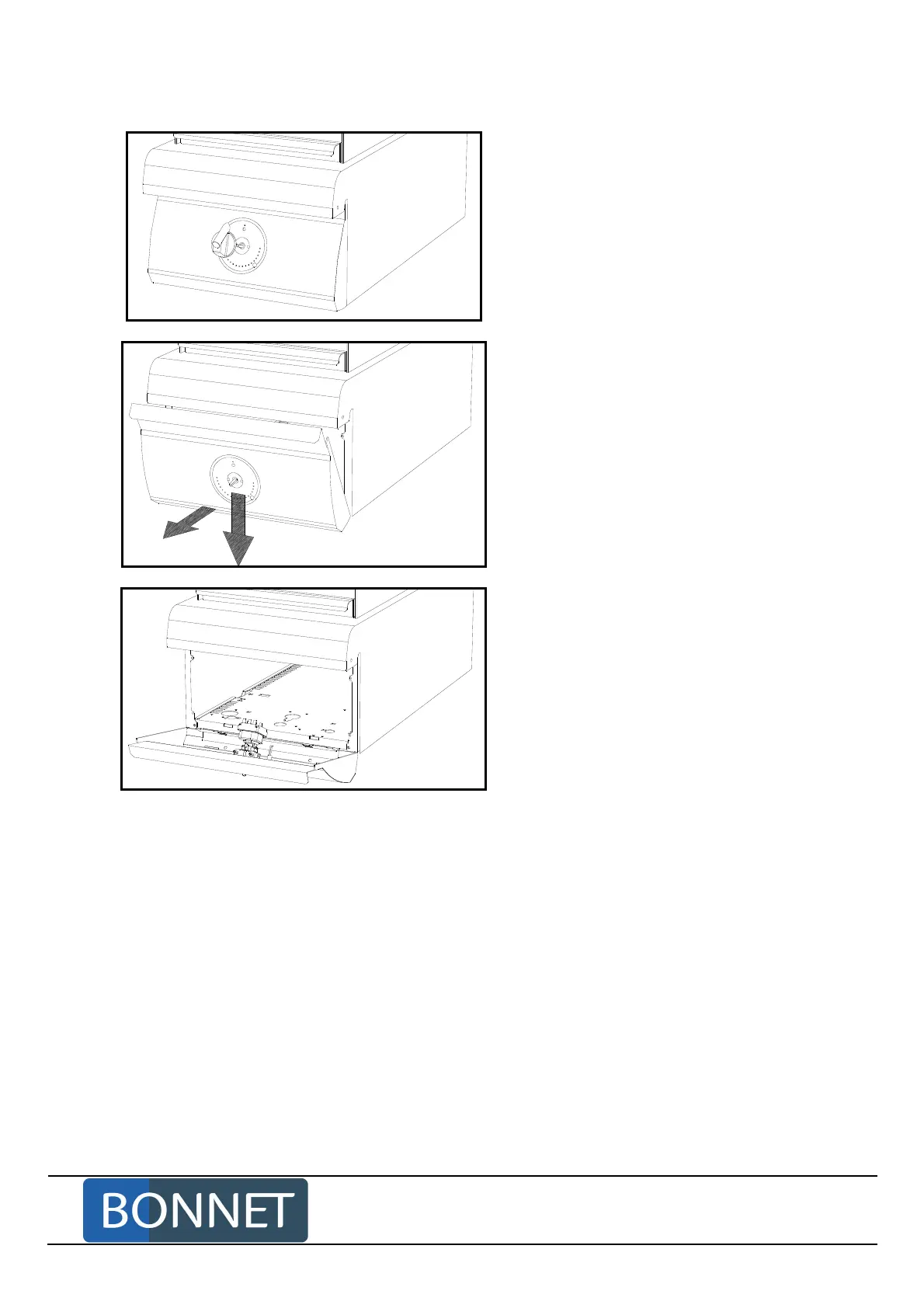

ACCESS TO THE COMPONENTS LOCATED BEHIND THE FASCIA
- Unlock the fixation screws of the
water and electric control buttons and
remove the latter.
- Unscrew both M5 x 16 screws under
the fascia.
2
- Tilt down the fascia: Slightly pull it
downwards then tilt it to yourself
.
- Put the fascia in secured position:
clamp both lugs in the apertures
foreseen in the fascia.
