3.2 COOKING UNITS

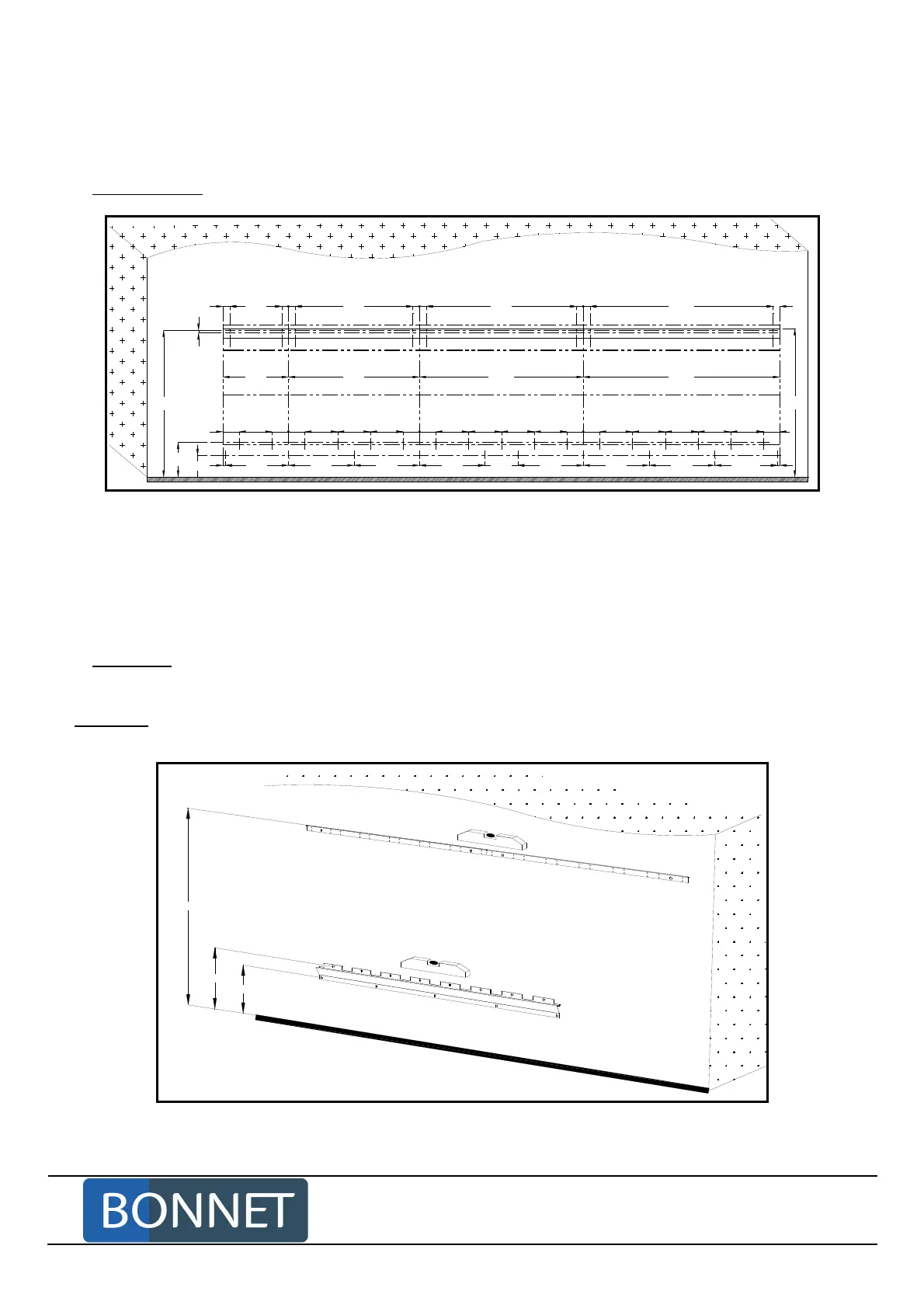

3.2.1 ASSEMBLY OF CANTILEVER APPLIANCES TO A WALL
Drilling pattern
892
16
212
131
400 800 1000 1200
41
4141 4141 4141 41
100 100
200
100
200 200 200
100100
200 200 200 200
100100
200 200 200 200 200
100
1118918718318
15
385 400 400 400 200 400 400 400 385
15
902
The fixation of a bracket must support a tensile strength of 400 daN (2 brackets per a 400, 800, 1000 or
1200 wide appliance).
It is recommended, for the fixation of cantilever appliances to a concrete wall, to observe the following points:
* The reinforced concrete of the wall must be at least of the quality 23 MPA (DTU).
* Use HSA-R M 8x75 plugs or equivalent (2 for the cooking tops and 6 for the cooking units).
* For the plugs above, each hole must be drilled to diameter 8 mm and, at least, 65 mm deep.
Procedure
- Fix the lower supporting beam of the appliances against the wall.
Warning: Make sure the beam is really horizontal.
- Fix the supplied template to the wall with two ∅ 5 screws. Check horizontality.
902
212
131
