- Fix the appliances on the base at the front and back legs with two HM5 x 10 screws + ø 5 flat washers.
Caged nuts are built in the bottom of the appliance.
- Position the tops on the appliances.

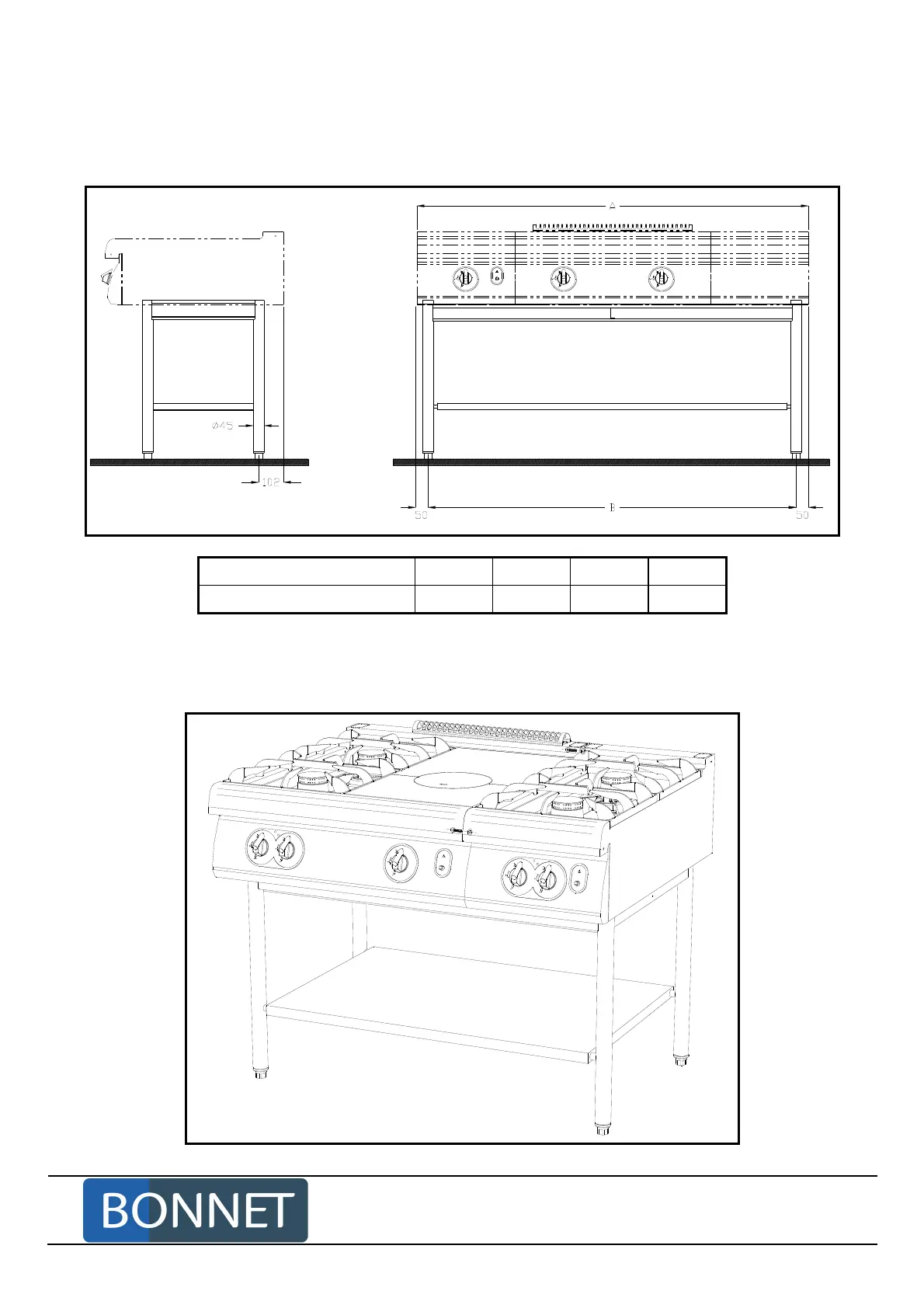

Width A of appliances
400 800 1200 1600
Distance B between legs
305 705 1105 1505
- Fix the appliances between themselves at the back in the way of collectors with one HM5
X
16
screw
+
Ø
5
flat washer.
- Fix the appliances between themselves at the front having removed the fascia (see paragraph 2.4) with
two HM5
X
16
screws
+
Ø
5 flat washers.
