- Fix the appliances between themselves at the back in the way of collectors with a
HM5
X
16
screw+
Ø
5
flat
washer.
- Fix the appliances between themselves at the front after having removed the fascia (see paragraph 2.4)
with 1 HM5
X
16
screw
+
Ø
5 flat washer.

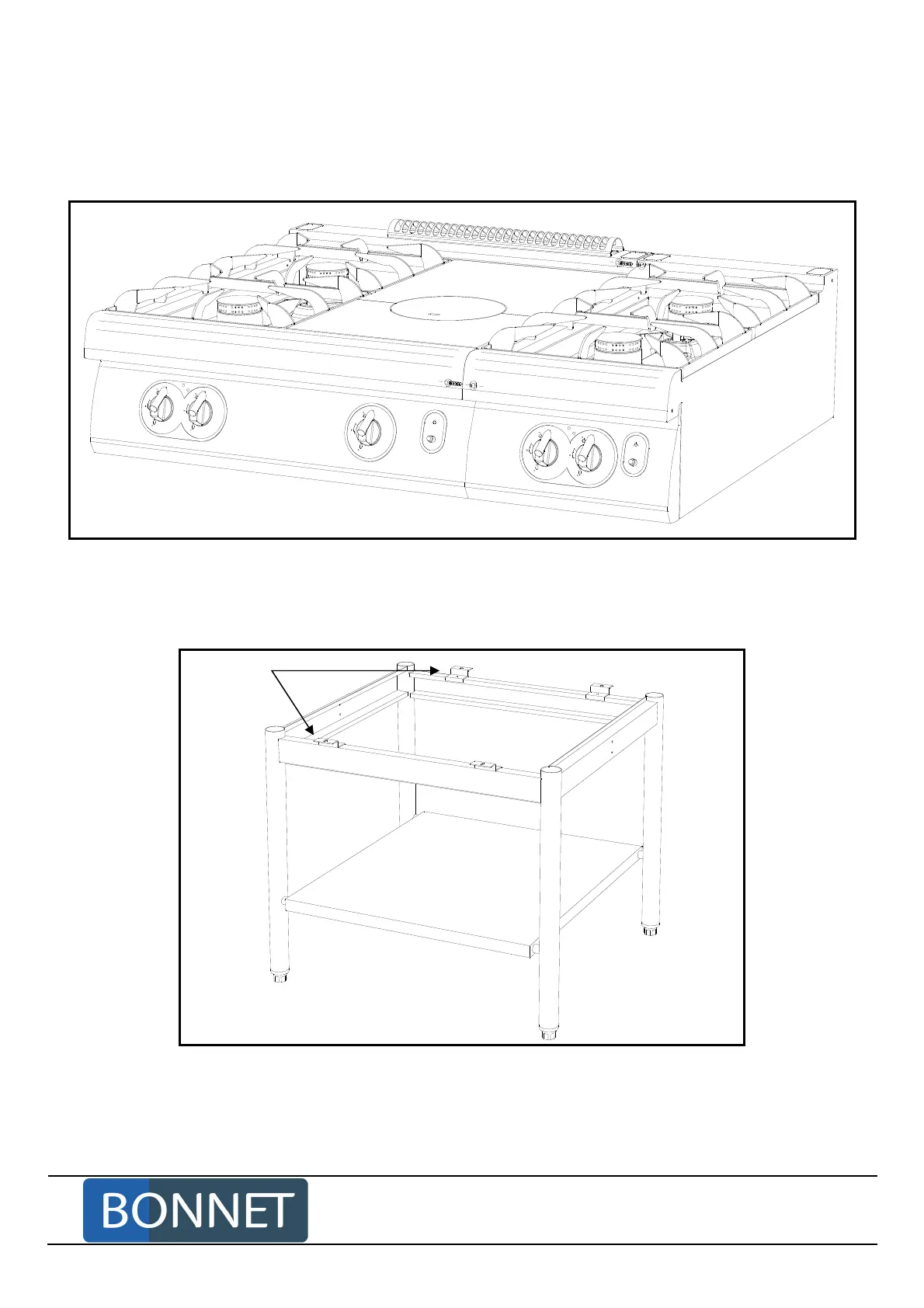

3.1.2 ASSEMBLY OF APPLIANCES ON A 630 HIGH BASE
- Fix the fixation lugs of the ready-to-install tops on the base.
Fixation
lugs
