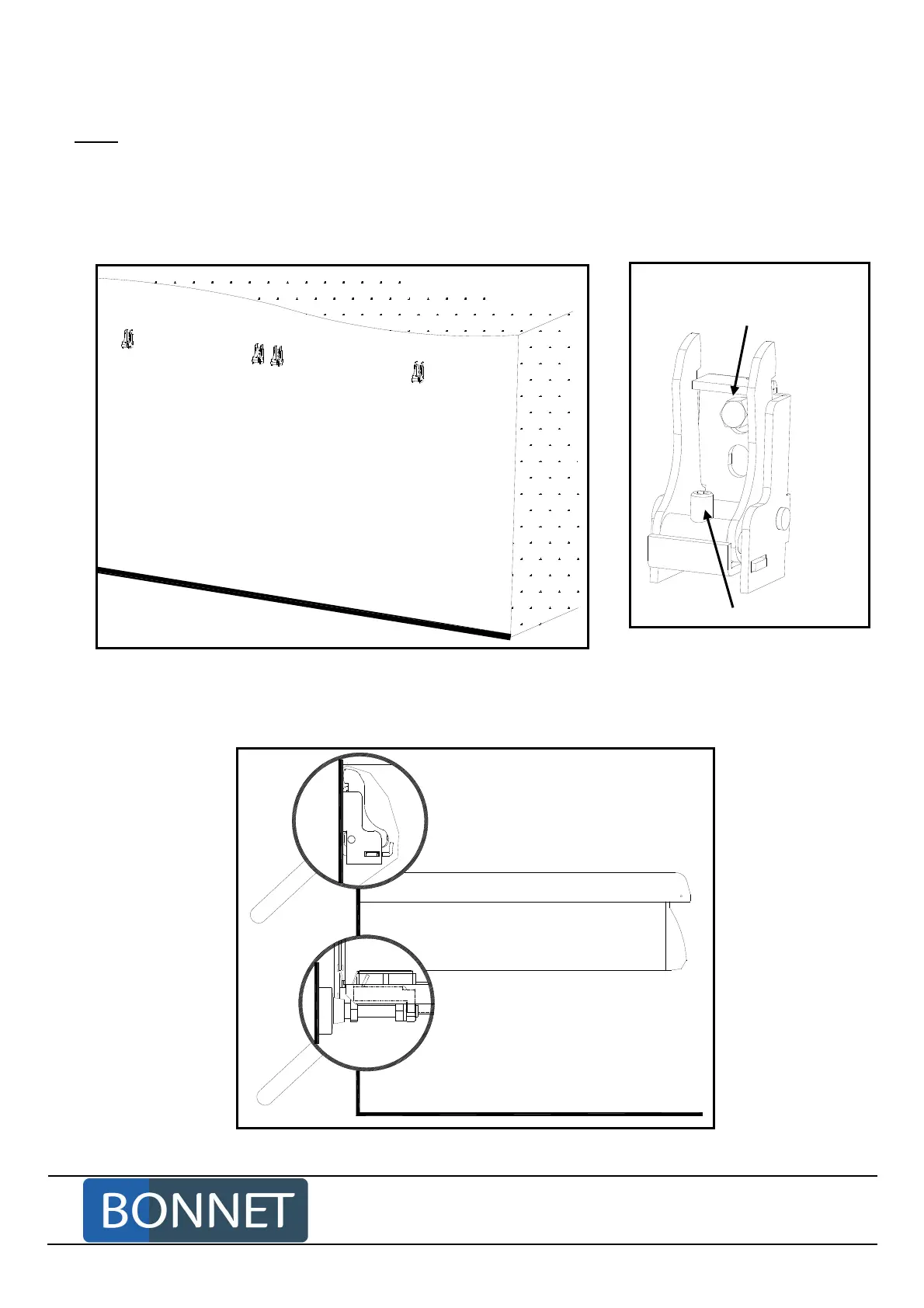

- Drill through the ∅ 5 fixation holes of the brackets. Use the upper holes (2 brackets per appliance).
Note: In case of impossibility (due to the presence of technical ducts, a metal strengthener in the
wall…), drill through the lower holes in the template.
- Remove the template.
- Increase the bracket fixation holes to diameter ∅ 8 and, at least, to 65 mm in depth.
- Fix the brackets to the wall. Use HSA-R M 8x75 plugs or equivalent.
- Open the brackets to the maximum by means of the centre screw
Opened bracket
Opening screw
- Set the appliances in place on the brackets and lock them.
- Put in place the wall supports under the appliance (2 per appliance).
- Adjust appliance alignment in height by means of the jack on the wall supports.
Fixation screw
