Bonnet OPTIMUM 700 - Drainage Connection

Page 69
3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

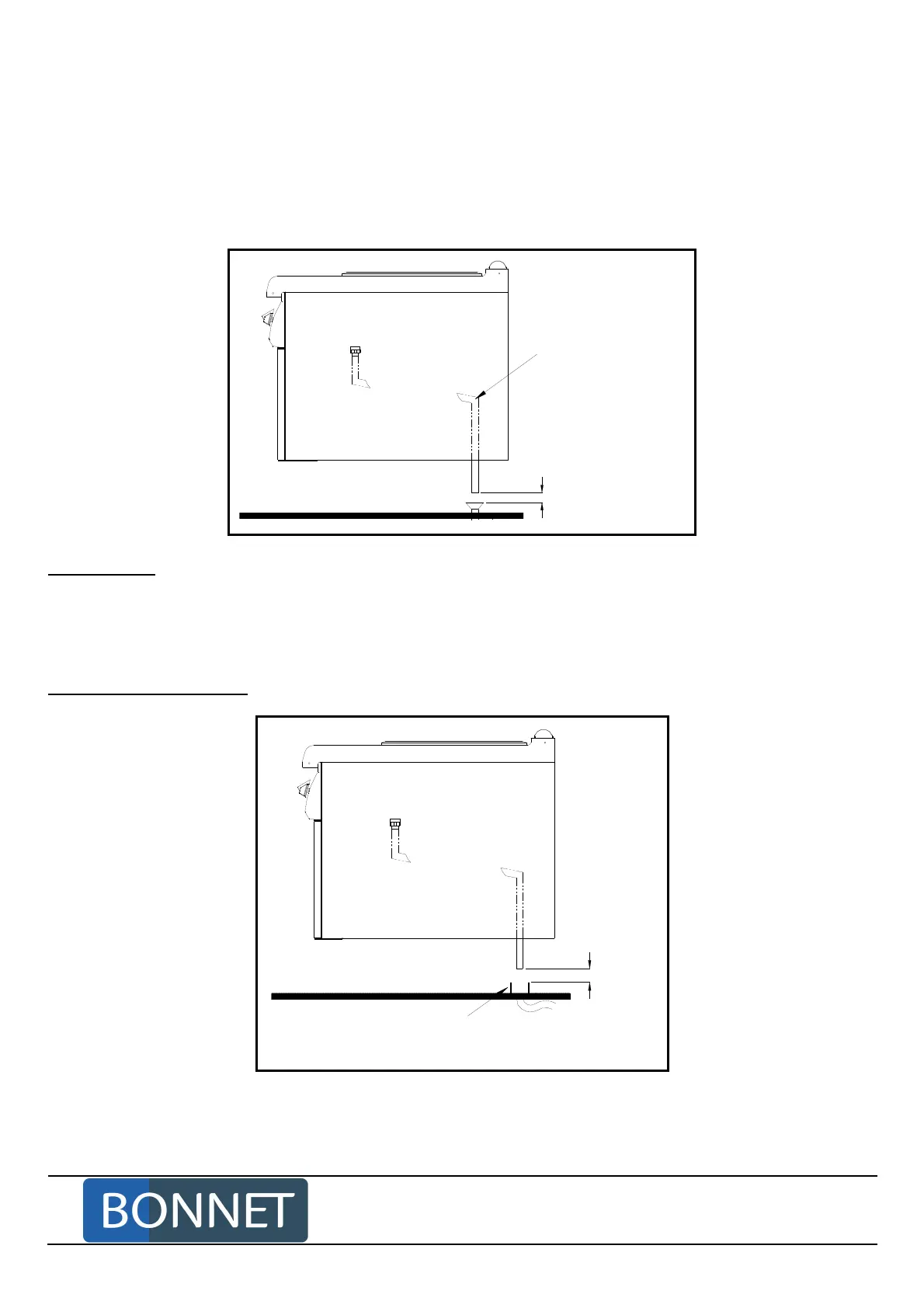

4.3 DRAINAGE CONNECTION
- A 18 mm diameter outlet only for cooking units. The ready-to-install tops are equipped with front
drainage.
Water drained may be from high temperature condensated water. Due to this, exclude the use of PVC-
type materials.
Tuyauterie à prévoir
selon la réservation
50 mm minimum
IMPORTANT: In the framework of protection against pollution of water networks, IT IS PROHIBITED TO
CONNECT THE APPLIANCE DIRECTLY TO THE OUTER SEWAGE SYSTEM (in a tight
way). So as to avoid any return of sewage water into the tray, foresee a vent in the open air
between the drainage system of the appliance and the outer sewage system.
The drainage must include a siphon to avoid any possible return of unpleasant smells.
Recommended solution:
50 mm
Bonde siphoide Ø 100
(siphonée sous dalle),
ou caniveau
Foresee a pipe,
depending on
reservation
Ø 100 siphon type plug (the
siphon in placed under the
screed) or a gutter
