- Fix the appliances between themselves at the back in the way of collectors with one HM5
X
16
screw
+
Ø
5 flat washer.
- Fix the appliances between themselves at the front having removed the fascia (see paragraph 2.4)
with two HM5
X
16
screws
+
Ø
5 flat washers.

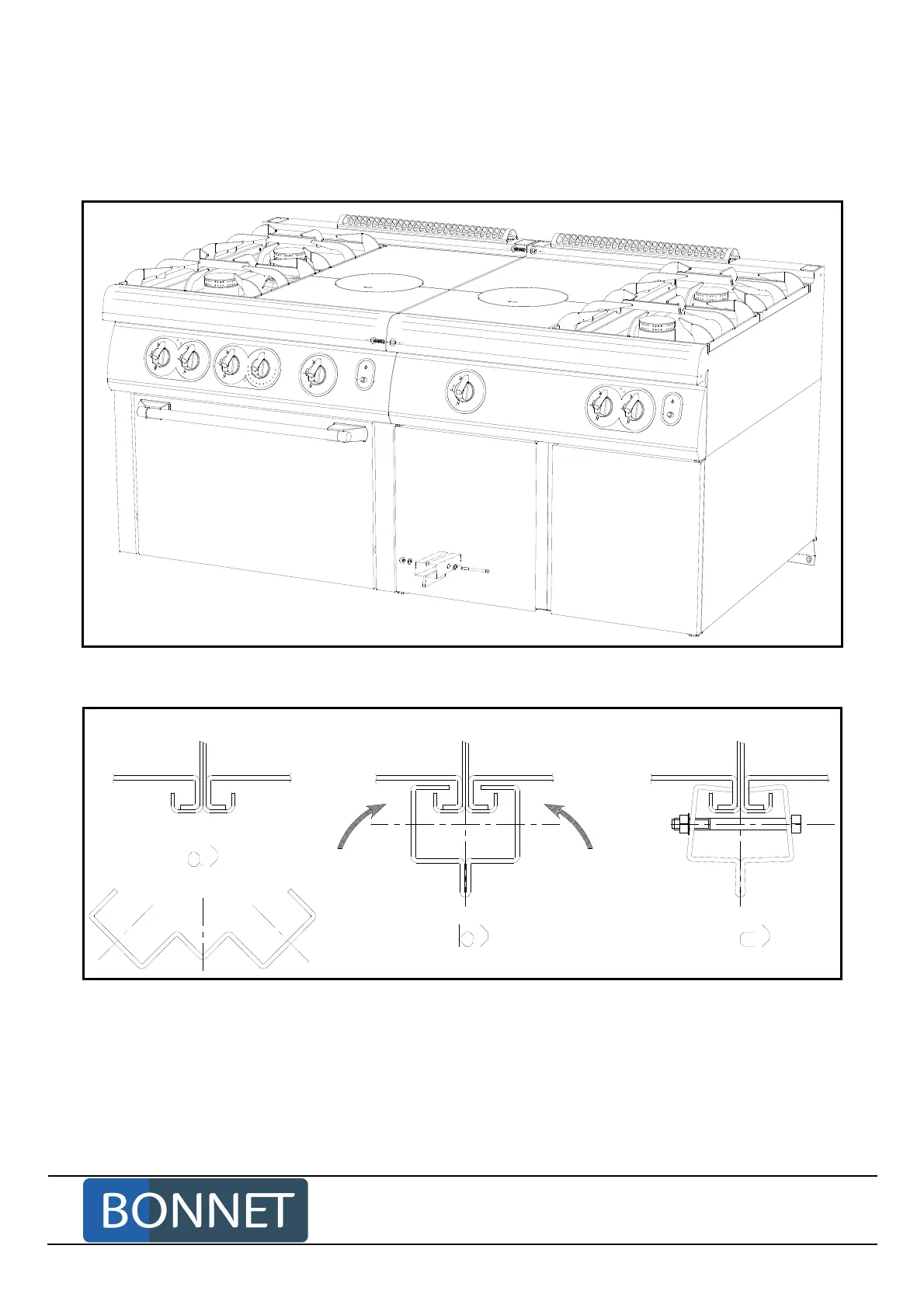

- Fix the appliances between themlselves behind the front legs with a clamp
a) Place the clamp to the folded sides.
b) Lock by hand.
c) Complete tightening with the HM5 x 60 bolt.
Left
appliance
Right
appliance
