Installation and Maintenance Manual
Version : 10//28/2011
Issue : THT-100-IMM-USA REV A6
5.5 Anchor Locations
The THT-100 unit is secured to the floor at several locations (Note: the Non-secure and Secure
side of the turnstile, Counter-Clockwise and Clockwise rotating directions). It is important to
layout the unit as illustrated in Figure 5.2 for proper operation. This manual lays out the unit in a
Counter Clockwise Rotation. To install in a clockwise rotation, simply reverse the anchoring
layout as shown below. Anchor hardware is supplied with the installation kit containing the
quantity of nuts and bolts necessary to install the unit. .

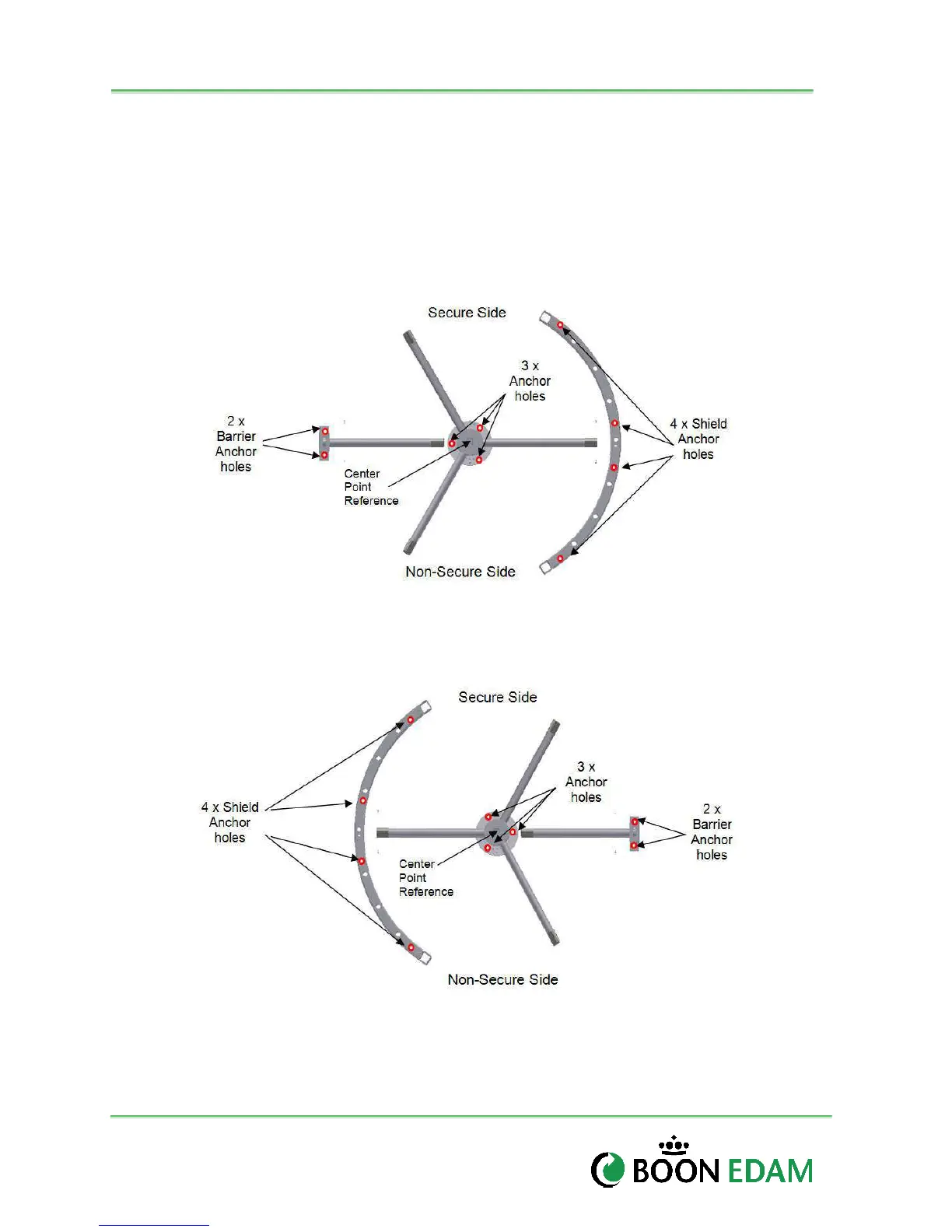

Counter Clockwise Entry Installation
Clockwise Entry Installation
Figure 5-2: Typical Anchor locations and Center Point (THT-100EC)
