3 Product description
3.1 General
The THT-100 Full Height Turnstile is available in a variety of models and configurations
consisting of a central rotor assembly, Shield Assembly, Barrier and Top Channel Mechanism.
The rotor assembly turns on a central axis preventing passage through the Barrier while
allowing authorized entry/exit through the Shield Assembly passage of the turnstile. Size of the
turnstile can vary but is typically small enough to discourage two persons passing the THT-100.
The typical sizes of a 25” (50cm) width rotor arm, result in a capacity of 25 to 30 persons per
minute in one direction, depending on the authorization system chosen.
A variety of surface finishes are available in galvanized, powder coat and stainless steel,
aluminium anodized and even a combination of metals such as aluminium and stainless steel
together.
All described components are provided in the THT-100 unless otherwise noted with an asterisk
(*) as optional equipment or versions. The THT-100 is a manually operated product,
actuated/controlled by an integrated Main Control Board (MCB) located in the Top Channel
Assembly Mechanism.

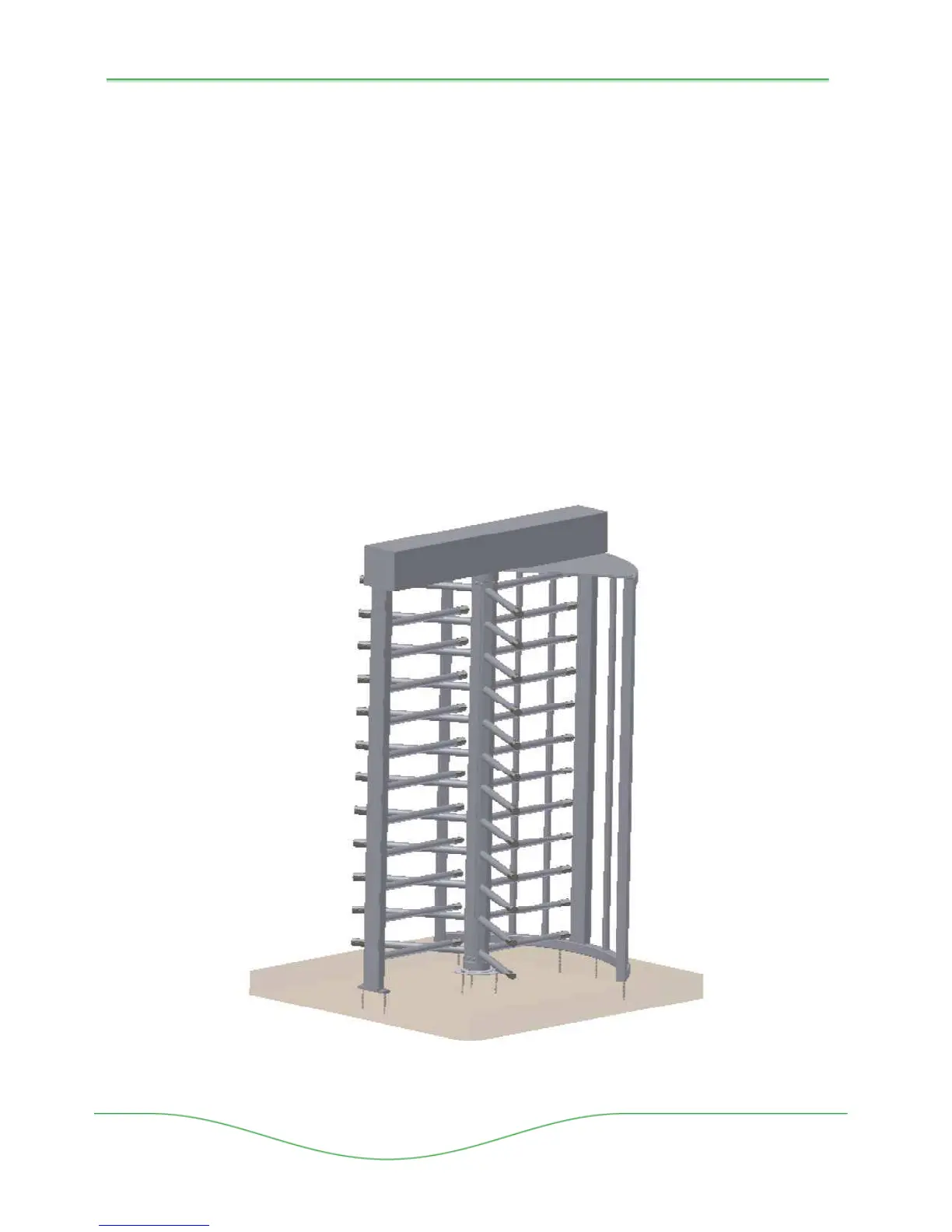

Figure 3-1: THT-100
