5.9 Main Control Box
Cable Connections
There are many cables which connect to the Main Control Box. The following cable plugs are
typical on the THT-100:

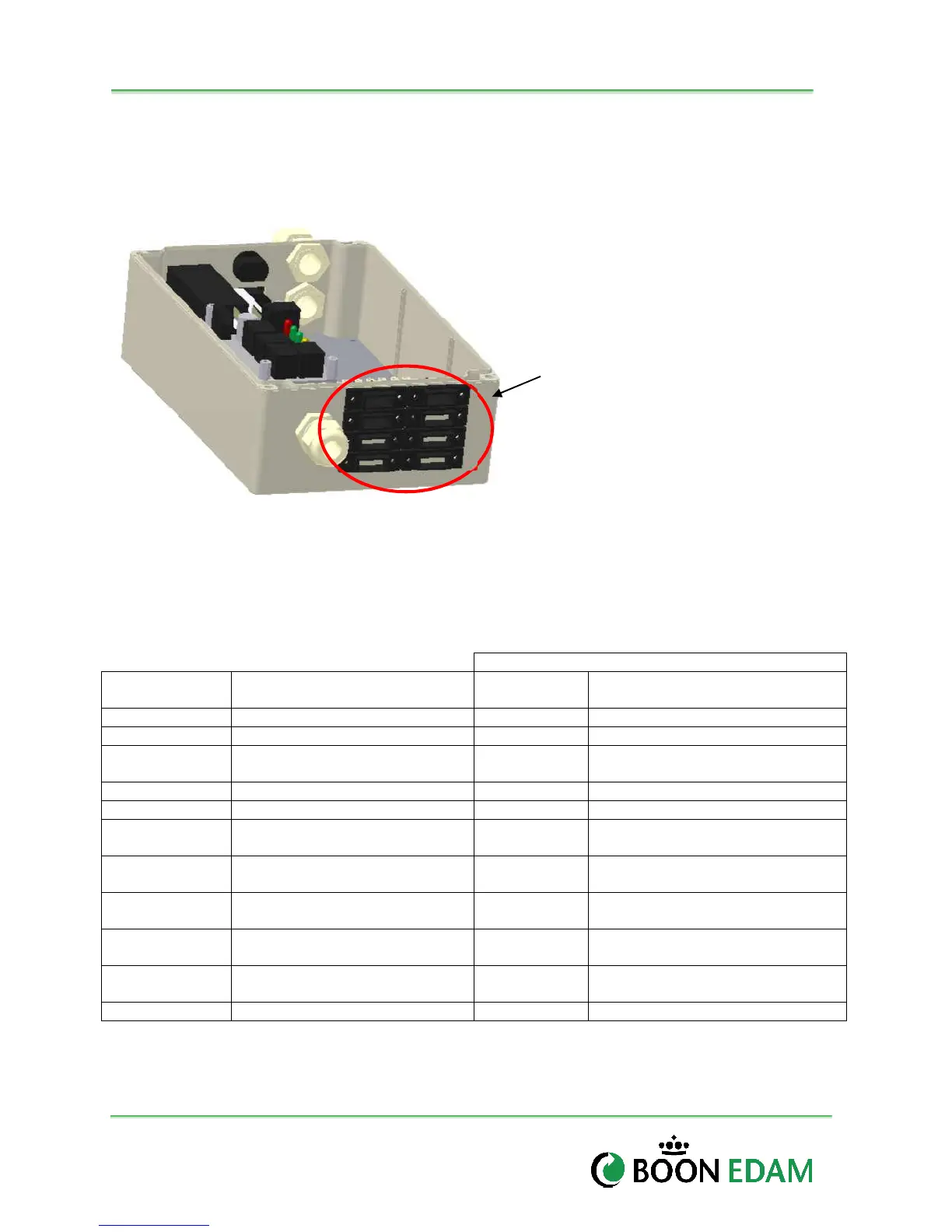

Figure 5-17: Cable Plug Layout of Main Control Box
Cable Descriptions
The following table lists all cables and connecting terminations points of the control box and the
device in the THT-100.
Number
Box
10909 Reset Switch 1 Cable RS 1 Reset Switch (ACW direction)
10910 Reset Switch 2 Cable RS 2 Reset Switch (CW direction)
10911 Keyswitch Assembly 1 Cable KS 1
Keyswitch (Non-Secure) ACW
rotation.
10912 LED 1 Cable LED 1 LED 1 (Non-Secure Side)
10913 LED 2 Cable LED 2 LED 2 (Secure Side)
10914
Solenoid Activation Switch 1
Cable SOL 1
Solenoid (Non-Secure activation
side).
10915
Solenoid Activation Switch 2
Cable SOL 2
Solenoid (Secure activation side)
10916 Keyswitch Assembly 2 Cable KS 2
Keyswitch (Secure Side) CW
rotation.
10917
Rotation Detection Switch 1
Cable Optional
Rotation Detection Microswitch
ACW direction
10918
Rotation Detection Switch 2
Cable Optional
Rotation Detection Microswitch
CW direction
10919 Home Position Switch Cable Optional Home Position Microswitch
Factory Connected :
• KS 1 and 2 – Key Switch
• RS 1 and 2 – Reset Switch
• Sol 1 and 2 – Solenoids
To be connected in Field:
• LED 1 and 2 – Endpost Lights
KS 2
RS 2
SOL 2
LED 2
KS 1
RS 1
SOL 1
LED 1
