7
Installation and Maintenance Manual
Version : 10//28/2011
Issue : THT-100-IMM-USA REV A6
3.2 Shield Options
The THT 100 can be configured in a variety of Shield Assembly options. The following shield
options are commonly available.

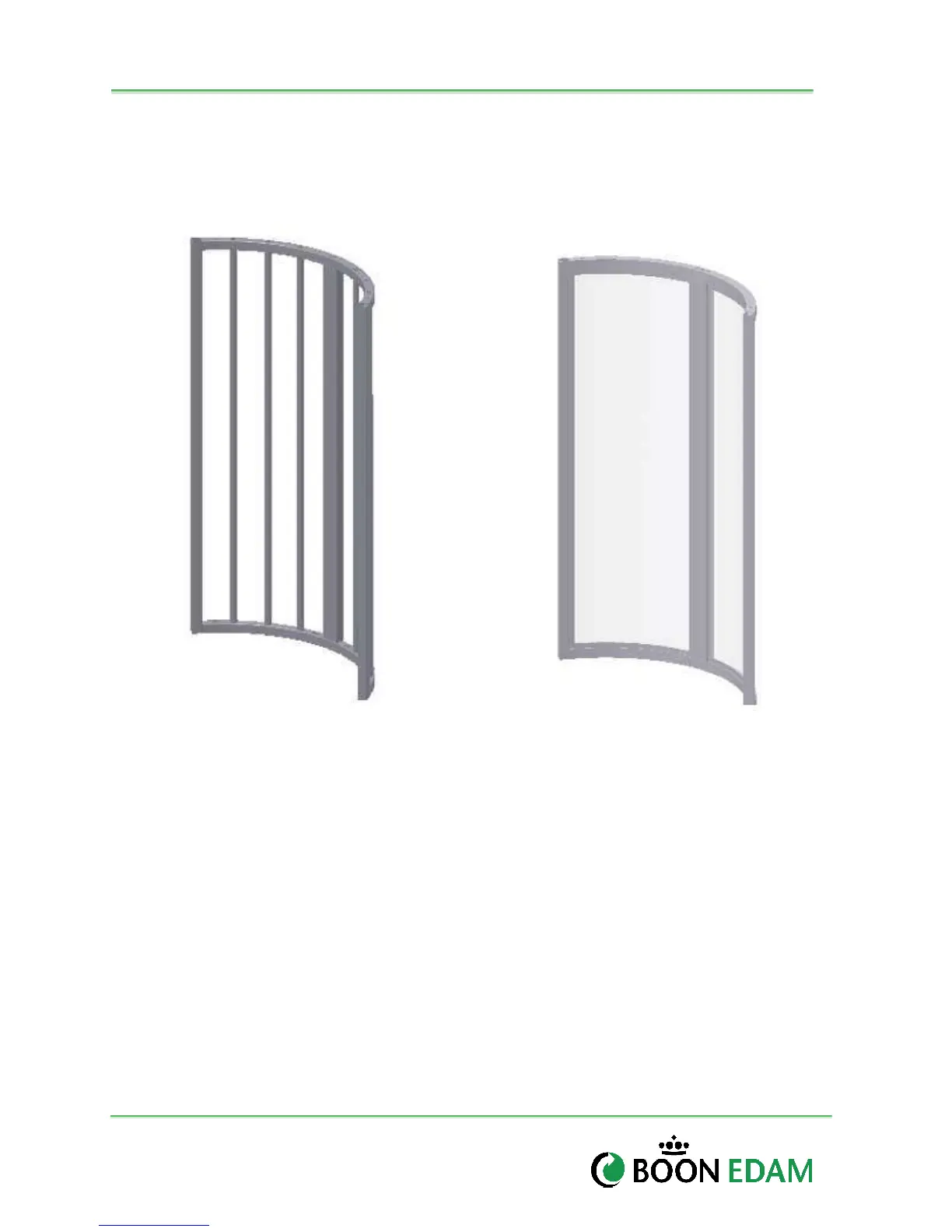

Figure 3-2: (A) StandardShield and (B) Optional Shield with Lexan Pannels
A - Standard
B - Shield w/Lexan Pannels
